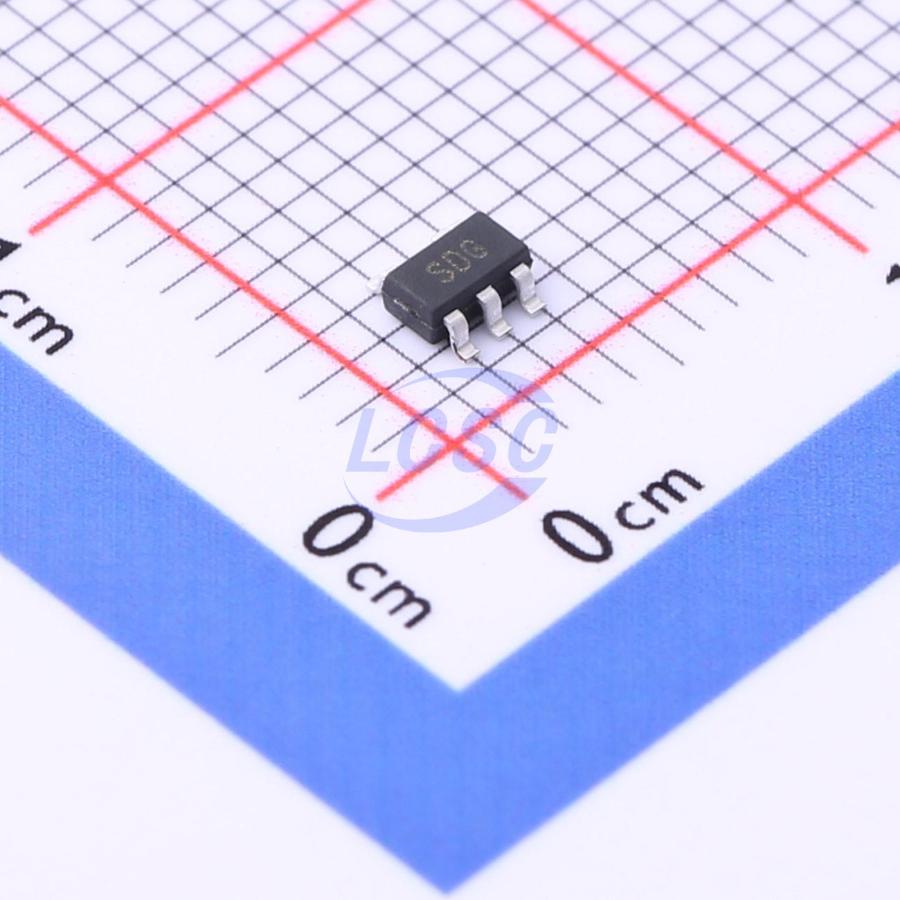

TPS70933DBVR-TP
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
36V,200mA,2uA,High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS70933DBVR-TP
- Store part #
- C2937032
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C2937032
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.00 | ₹125.00 |
| 50+ | ₹22.24 | ₹1,112.00 |
| 150+ | ₹21.06 | ₹3,159.00 |
| 500+ | ₹19.58 | ₹9,790.00 |
| 3,000+ | ₹17.49 | ₹52,470.00 |
| 6,000+ | ₹17.09 | ₹1,02,540.00 |
5 × ₹25.00
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70933DBVR-TP
₹125.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The TP709 is a low -dropout (LDO) voltage regulators is stable with the ceramic output capacitor over its wide with enable function offering the benefits of high input input range from 2V to 36V and the entire range of voltage, low-dropout voltage, low-power consumption, output load current. The features of low quiescent current as low as 2μA and zero disable current is ideal for powering the battery equipment to a longer service life.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 200mA Output Current
- Wide Operating Input Voltage Range: 2V to 36V
- Dropout Voltage: 0.65V at 100mA (VoUT = 5V)
- Support Fixed Output Voltage 1.8V, 3.3V, 5V, 9V, 12V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-5 Package Available
