TECH PUBLICDatasheet (PDF)

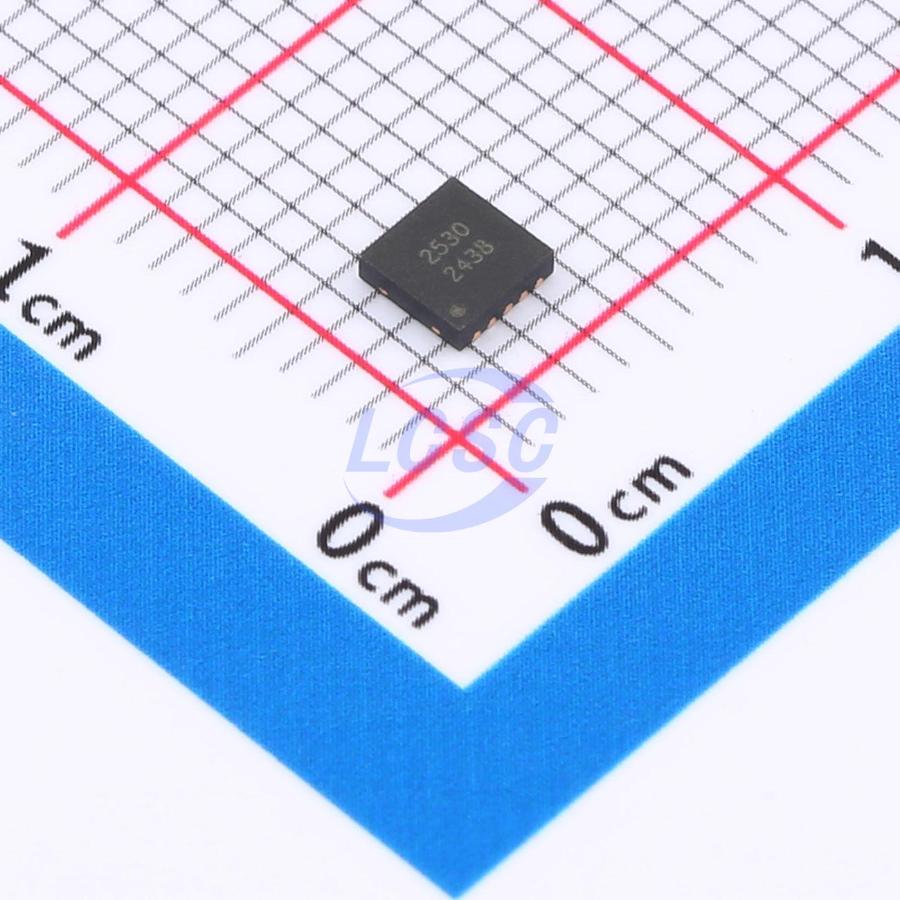

TP2530CADJD16
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A PDFN-10L(3x3)
PDFN-10L(3x3)RoHSActive
5V/3A Ultra Low-Dropout Voltage Linear Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP2530CADJD16
- Store part #
- C48886810
- Package / case
- PDFN-10L(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,024 in stock
#C48886810
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.79 | ₹65.79 |
| 10+ | ₹51.77 | ₹517.70 |
| 30+ | ₹45.74 | ₹1,372.20 |
| 100+ | ₹38.18 | ₹3,818.00 |
| 500+ | ₹34.73 | ₹17,365.00 |
| 1,000+ | ₹32.80 | ₹32,800.00 |
1 × ₹65.79
₹65.79
excl. GST
₹77.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP2530CADJD16
₹65.79 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 900uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 3A
- Features
- Built-in soft-start;Input under-voltage protection;Over Current Protection;Reset function;Thermal shutdown;Operating status indication;Enable control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The TP2530CADJD16 is a 3A low-dropout linear regulator designed for low-dropout and high-current applications. The device operates with dual power supplies: one provides the control input for the control circuit, while the other power input can be as low as 1.0V to supply current to the output. It features 3A output current, ultra-low dropout output voltage, and comprehensive protection functions. The output voltage can be as low as 0.8V. Additional features include soft-start, undervoltage protection, current limiting protection, power-on reset function, and over-temperature protection. The device is available in a DFN3×3-10L package.
Applications
- Notebooks, netbooks, graphics cards
- Low-voltage logic power supply
- Chipset power supply
- Server systems
- Post-regulator for switching power supplies
Key features
- Input voltage range: 1.0V to 6.0V
- Adjustable output voltage (minimum 0.8V)
- Excellent line regulation (typical 0.01%/V)
- Excellent load regulation (typical 0.1%/A)
- RoHS compliant, lead-free package
- Typical dropout voltage of 250 mV at 3A output current
- Internal thermal overload protection
- Internal short-circuit current limiting
- Output undervoltage protection
- Stable operation with ceramic capacitors
