TECH PUBLICDatasheet (PDF)

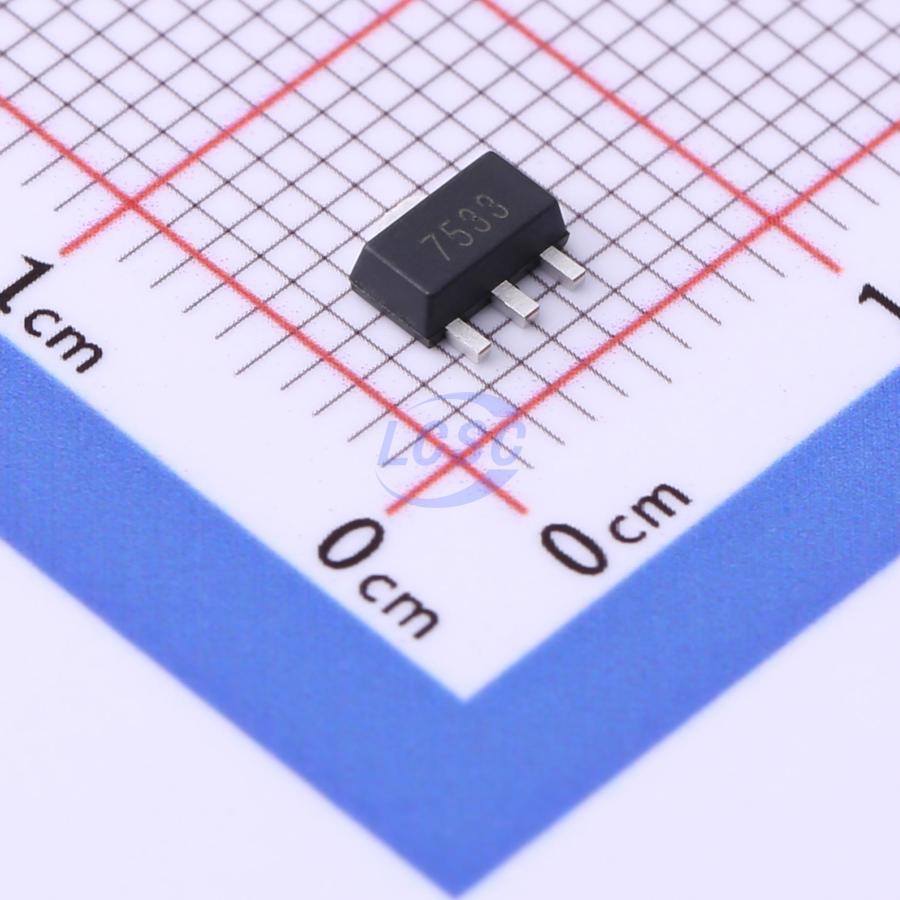

TP375C33T3
3.3V Positive SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
CMOS LDO Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP375C33T3
- Store part #
- C3021137
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,005 in stock
#C3021137
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.93 | ₹104.65 |
| 50+ | ₹16.55 | ₹827.50 |
| 150+ | ₹14.67 | ₹2,200.50 |
| 1,000+ | ₹11.80 | ₹11,800.00 |
| 2,000+ | ₹10.76 | ₹21,520.00 |
| 5,000+ | ₹10.13 | ₹50,650.00 |
5 × ₹20.93
₹104.65
excl. GST
₹123.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TP375C33T3
₹104.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Features
- Short Circuit Protection
- Output Type
- Fixed;Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
The TP375C series is a set of low power high voltage regulators implemented in CMOS technology which can provide 150 mA output current. The device allows input voltage as high as 36V. The TP375C series is available in several fixed output voltages. CMOS technology ensures low dropout voltage and low quiescent current. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable output voltages.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
Key features
- 2.5 μA Ground Current at no Load
- ±2% Output Accuracy
- 200 mA Output Current
- Wide Operating Input Voltage Range: 3V to 36V
- SOT - 23, SOT89 - 3, SOT23 - 5 Package Available
