MT9700-N1 Active High 2A Load Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
From
₹7.57
2,05,500 in stock
JingYangDatasheet (PDF)
TP6002AX
1 1A Active High High Side Switch SOT-23-5L Power Distribution Switches, Load Drivers RoHS
SOT-23-5LROHS CompliantActive
High-Side Power Switches
- Manufacturer
- JingYang
- Manufacturer part #
- TP6002AX
- Store part #
- C5380432
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C5380432
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.87 | ₹114.35 |
| 50+ | ₹18.28 | ₹914.00 |
| 150+ | ₹16.33 | ₹2,449.50 |
| 500+ | ₹13.87 | ₹6,935.00 |
| 3,000+ | ₹12.78 | ₹38,340.00 |
| 6,000+ | ₹12.12 | ₹72,720.00 |
5 × ₹22.87
₹114.35
excl. GST
₹134.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

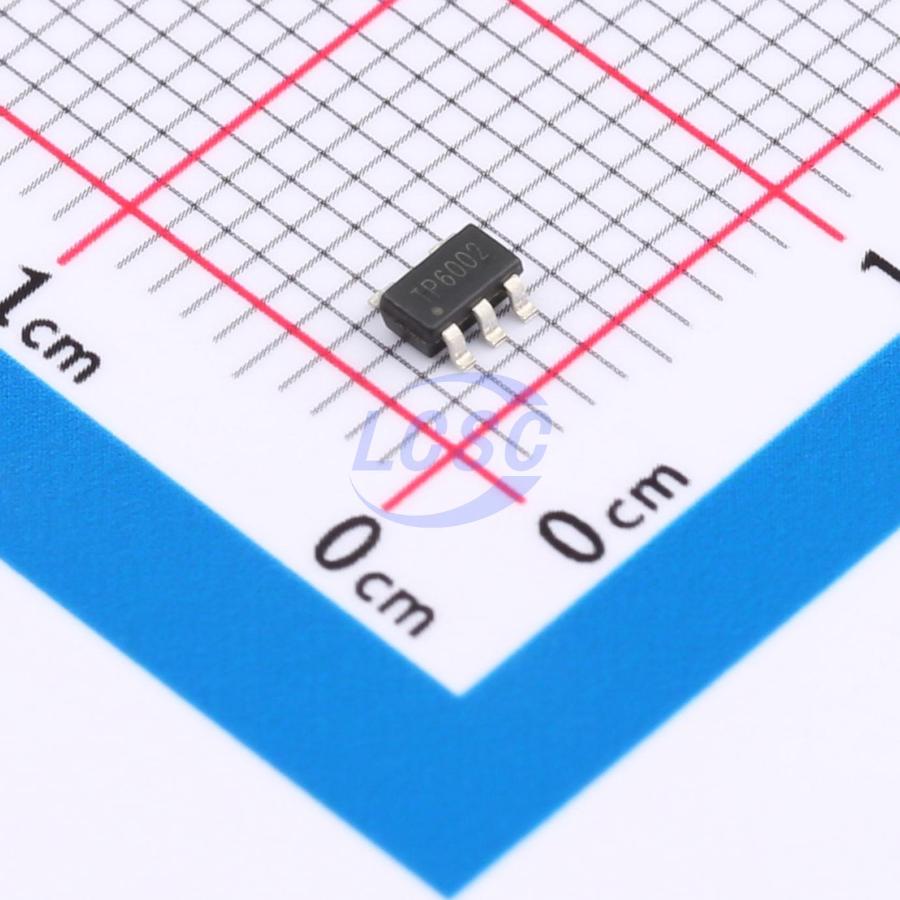

TP6002AX
₹114.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Integrated charge pump;Reverse current blocking;Soft-start
- number of channels
- 1
- Maximum Continuous Current
- 1A
- Control Input Logic
- Active High
- Operating Voltage
- 2.4V~5.5V
- RDS(on)
- 80mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The TP600X is a low voltage, single P-MOSFET high-side power switch, optimized for self-powered and bus- powered Universal Serial Bus (USB) applications. The TP600X equipped with a charge pump circuitry to drive the internal MOSFET switch; the switch's low RDS(ON) 80mΩ meets USB voltage drop requirements; and a flag output is available to indicate fault conditions to the local USB controller. Additional features include soft-start to limit inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under-voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present. lower quiescent current as 20uA making this device ideal for portable battery-operated equipment. The TP600XA is available in SOT23-5L package requiring minimum board space and smallest components.
Applications
- USB Bus/Self Powered Hubs
- USB Peripherals
- ACPI Power Distribution
- PC Card Hot Swap
- Notebook, Motherboard PCs
- Battery-Powered Equipment
- Hot-Plug Power Supplies
- Battery-Charger Circuits
Key features
- Wide Input Voltage Ranges : 2.4V to 5.5V
- Compliant to USB Specifications
- Typical Rps(ON) 80mΩ
- 1.9V Typical Under-Voltage Lockout (UVLO)
- Low Supply Current : 20uA Typical at Switch on State, 1uA Typical at Switch off State
- Current Limiting Protection
- Thermal Shutdown Protection
- Output Can Be Forced Higher Than Input (Off-State)
