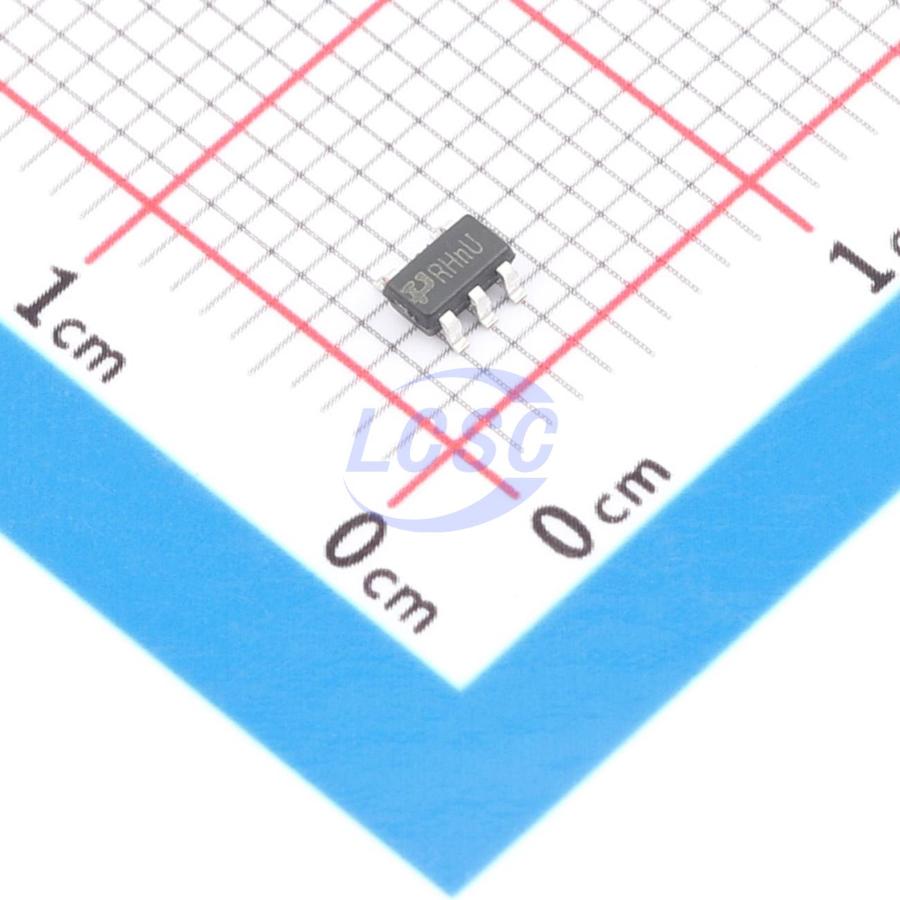

TP6217C33M5G
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOT-23-5
SOT-23-5RoHSActive
800 mA, 25 μA, high PSRR voltage regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP6217C33M5G
- Store part #
- C3021087
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,990 in stock
#C3021087
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.00 | ₹100.00 |
| 50+ | ₹16.25 | ₹812.50 |
| 150+ | ₹14.37 | ₹2,155.50 |
| 500+ | ₹12.95 | ₹6,475.00 |
| 3,000+ | ₹10.76 | ₹32,280.00 |
| 6,000+ | ₹10.19 | ₹61,140.00 |
5 × ₹20.00
₹100.00
excl. GST
₹118.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6217C33M5G
₹100.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 800mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TP6217C Series are a group of voltage regulators manufactured by CMOS technology with high ripple rejection, ultra-fast transient and low dropout voltage, which large output currents even when the difference of the input-output voltage is small. Each of the TP6217C of a high-precision voltage reference, error correction circuit, and a current limited output driver. Thus the series very suitable for the battery-powered equipments, wireless communication applications, industry equipments and so on.
Applications
- Battery powered systems
- Portable instrumentations
- PC peripherals
- CD/DVD - ROM, CD/RW
- Wireless devices
- Battery charger
Key features
- 25μA Ground Current at no Load
- ±2% Output Accuracy
- 800mA Output Current
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.45V at 800mA/ Vout 3.3V
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over Temperature Protection
- SOT23 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6220B331MR#C3040644TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,555 | ₹22.05 · 7,555 in stock | View |
 | XC6210B332MR#C3021084TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 9,010 | ₹26.22 · 9,010 in stock | View |
