TECH PUBLICDatasheet (PDF)

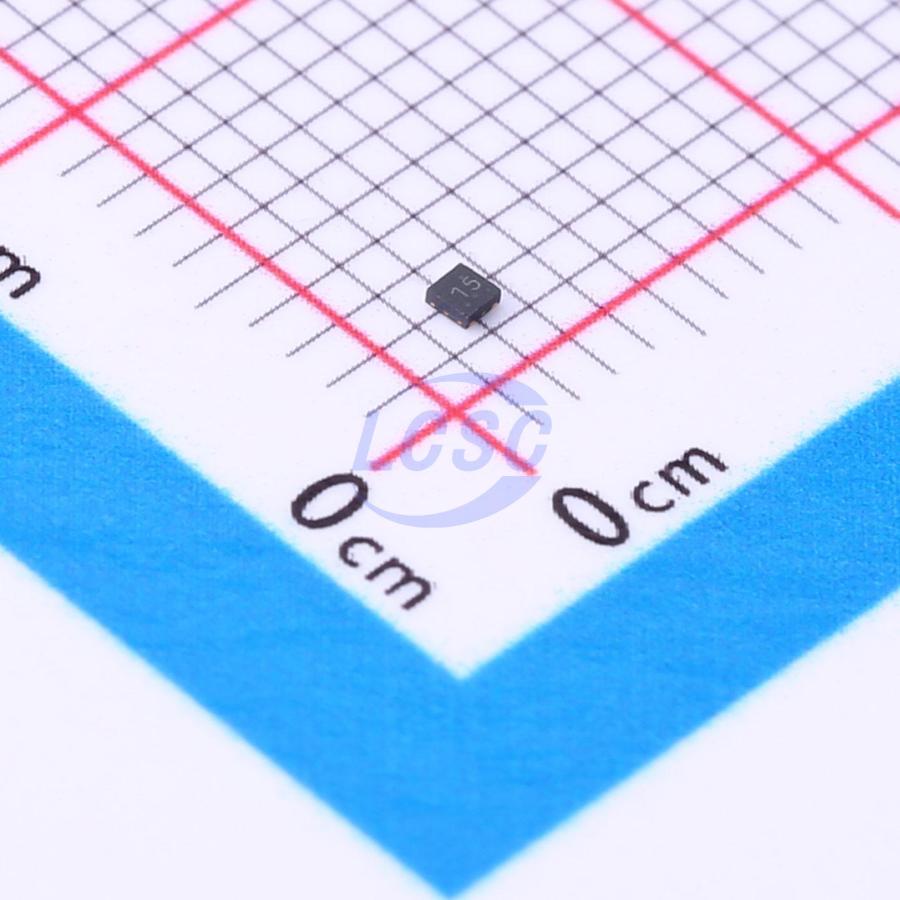

TP73318PDQNR
1.8V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4-EP(1x1)RoHSActive
300mA Low-Dropout Linear Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP73318PDQNR
- Store part #
- C2923366
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,045 in stock
#C2923366
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.95 | ₹134.75 |
| 50+ | ₹21.49 | ₹1,074.50 |
| 150+ | ₹19.14 | ₹2,871.00 |
| 500+ | ₹16.22 | ₹8,110.00 |
| 2,500+ | ₹13.42 | ₹33,550.00 |
| 5,000+ | ₹12.63 | ₹63,150.00 |
5 × ₹26.95
₹134.75
excl. GST
₹159.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TP73318PDQNR
₹134.75 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 15uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
The is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.4V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 15 μA low quiescent current and 0.5 μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- CDM/GSM mobile phone
- PDAs/MP3
- Audio Video equipment
Key features
- Input Voltage Range: 1.4V to 5.5V
- 15 μA Ground Current (In) at no Load
- RR = 70dB at 1kHz
- ±1.5% Output Accuracy
- Low (0.1 μA) Shutdown Current
- Dropout Voltage: 0.15V at 300 mA when Vour ≥ 3V
- Support Fixed Output Voltage 0.8V, 1.V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Current Limit Protection
- Over Temperature Protection
- Output Active Discharge Function
- DFN - 4L 1x1 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMIC5504-1.8YMT#C53114945TECH PUBLIC · DFN-4(1x1) | TECH PUBLIC | DFN-4(1x1) | 12,000 | ₹16.86 · 12,000 in stock | View |
 | TP132LC18D4#C48586705TECH PUBLIC · DFN-4(1x1) | TECH PUBLIC | DFN-4(1x1) | 5,790 | ₹6.07 · 5,790 in stock | View |
 | TP132C18D4#C2923396TECH PUBLIC · DFN-4(1x1) | TECH PUBLIC | DFN-4(1x1) | 2,395 | ₹16.01 · 2,395 in stock | View |
 | TP132C18D4-1#C2928716TECH PUBLIC · DFN-4-EP(1x1) | TECH PUBLIC | DFN-4-EP(1x1) | 6,825 | ₹11.26 · 6,825 in stock | View |
