TECH PUBLICDatasheet (PDF)

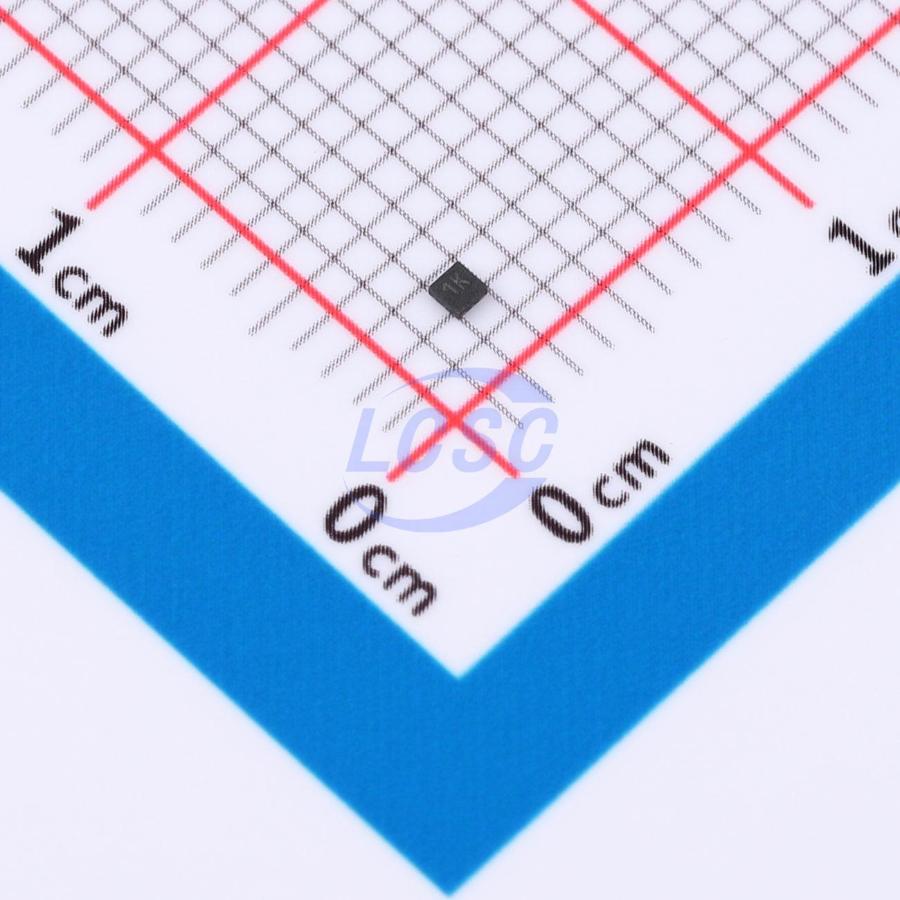

TPMIC5504-1.8YMT
1.8V Positive Fixed DFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4(1x1)RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMIC5504-1.8YMT
- Store part #
- C53114945
- Package / case
- DFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,000 in stock
#C53114945
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.86 | ₹84.30 |
| 50+ | ₹13.20 | ₹660.00 |
| 150+ | ₹11.38 | ₹1,707.00 |
| 500+ | ₹10.02 | ₹5,010.00 |
| 2,500+ | ₹8.92 | ₹22,300.00 |
| 5,000+ | ₹8.37 | ₹41,850.00 |
5 × ₹16.86
₹84.30
excl. GST
₹99.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPMIC5504-1.8YMT
₹84.30 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 15uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
TPMIC5504 is a low-dropout regulator with an enable function, operating over an input voltage range of 1.2V to 5.5V. The device is housed in a compact package and can deliver up to 300mA of output current. Its 15μA low quiescent current and 0.5μA shutdown current make it well suited for battery-powered applications requiring long operating life. Additional features include current limiting, overtemperature protection, and output discharge.
Applications
- Portable battery-powered equipment
- Low-power microcontrollers
- Laptops, handheld PCs, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- Ground current 15μA at no load
- Output accuracy ±2%
- Output current 300mA
- Shutdown current 10nA (optional)
- Wide operating input voltage range: 1.2V to 5.5V
- Dropout voltage: 0.22V at 300mA output current with VOUT = 3.3V
- Fixed output voltage options: 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable operation with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Package: SOT23-5, DFN1X1-4
