TECH PUBLICDatasheet (PDF)

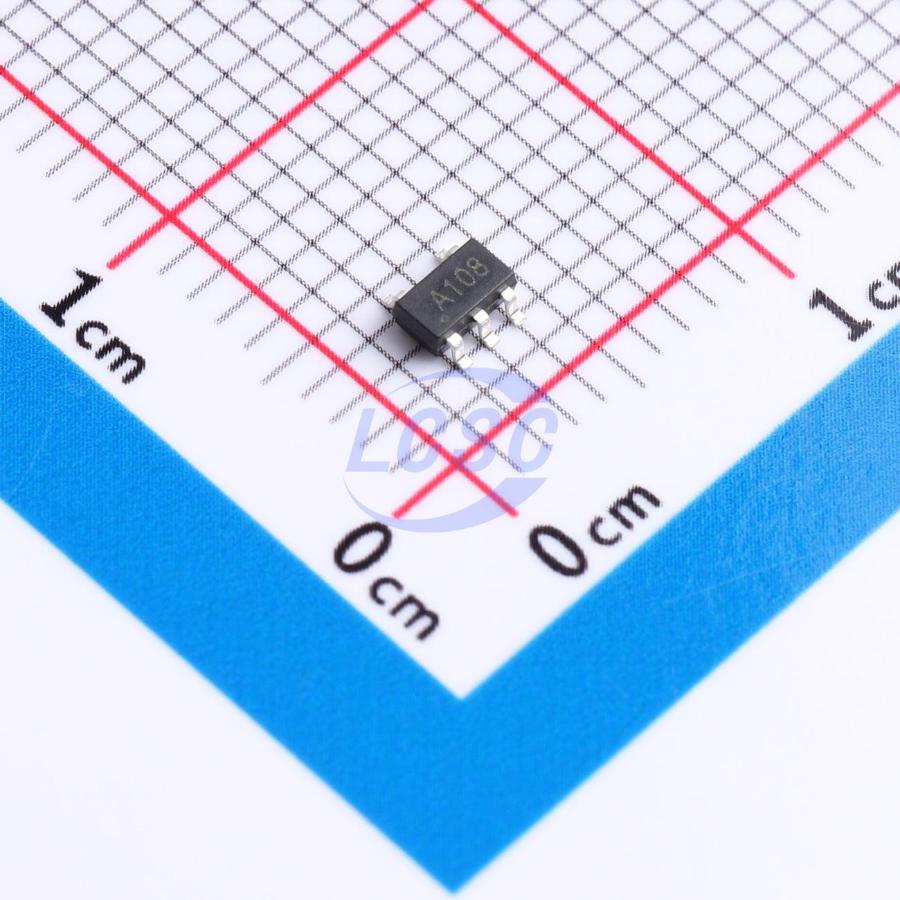

TP74AHC1G08S5
40uA 2V~5.5V 8.9ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AHC1G08S5
- Store part #
- C52205188
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C52205188
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.81 | ₹68.10 |
| 100+ | ₹5.37 | ₹537.00 |
| 300+ | ₹4.64 | ₹1,392.00 |
| 3,000+ | ₹4.10 | ₹12,300.00 |
| 6,000+ | ₹3.66 | ₹21,960.00 |
| 9,000+ | ₹3.44 | ₹30,960.00 |
10 × ₹6.81
₹68.10
excl. GST
₹80.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AHC1G08S5
₹68.10 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;3.94V
- Quiescent Current(Iq)
- 40uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 8.9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
TP74AHC1G08 is a high-speed silicon-gate CMOS device offering a 2-input AND gate function.
Key features
- Operating voltage range: 2 ~ 5.5V
- Low supply current: I CC = 40μA (max)
- High speed: typical propagation delay tPD = 4.8ns @ VCC = 5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G08W5-TP#C52098170TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,950 | ₹5.85 · 2,950 in stock | View |
 | MC74VHC1G08DTT1G-TP#C53100491TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,500 | ₹5.77 · 2,500 in stock | View |
 | 74AHC1G08GV#C19829585TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 8,110 | ₹4.19 · 8,110 in stock | View |
 | SN74AHC1G08DBVR#C19829667TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 10,100 | ₹7.61 · 10,100 in stock | View |
 | TC7SH08F-TP#C54195011TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,970 | ₹5.81 · 2,970 in stock | View |
