TECH PUBLIC

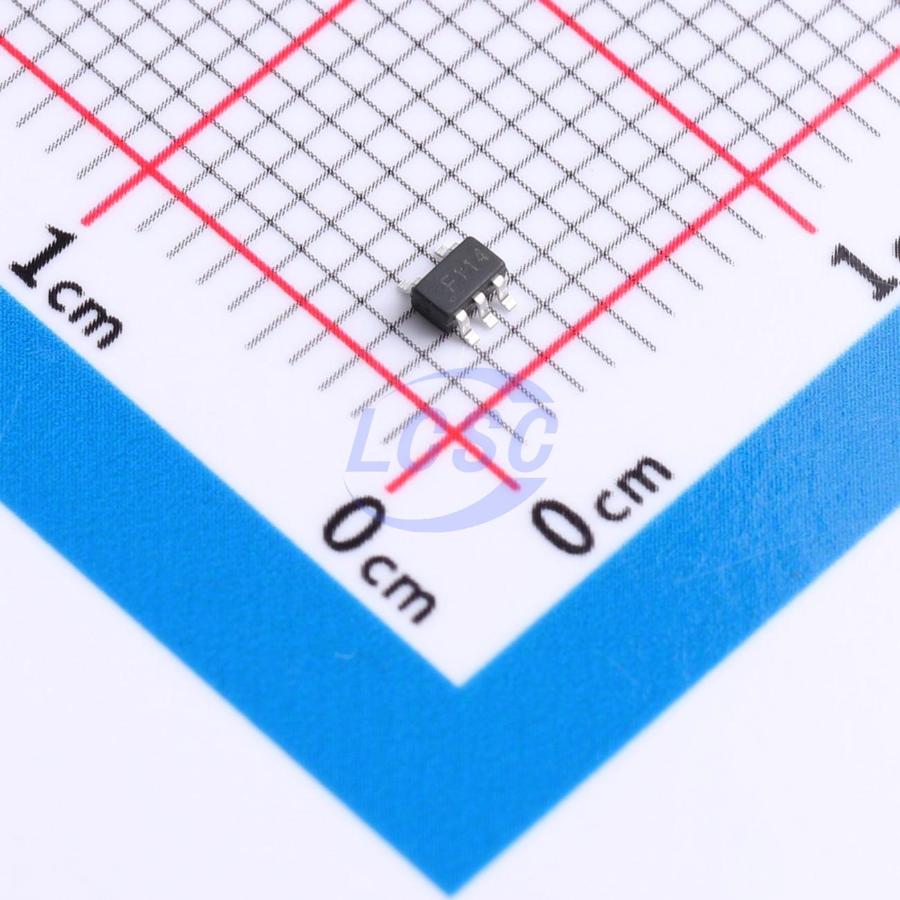

TP74AHC1G14C5

Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 40uA 1 SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74AHC1G14C5
Store part #: C52205193
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,970 in stock

#C52205193

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
10+	₹7.38	₹73.80
100+	₹5.82	₹582.00
300+	₹5.04	₹1,512.00
3,000+	₹4.46	₹13,380.00
6,000+	₹3.98	₹23,880.00
9,000+	₹3.74	₹33,660.00

Quantity (min 10, multiples of 10)

10 × ₹7.38

₹73.80

excl. GST

₹87.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74AHC1G14C5

₹73.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV;600mV
Propagation Delay: 10.6ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V;2.58V;3.94V;2.4V;3.7V
Quiescent Current(Iq): 40uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The TP74AHC1G14 contains a single inverter with Schmitt-trigger input, implementing the function Y = Ā. The device provides inverting buffer functionality with Schmitt-trigger action, capable of converting slowly changing input signals into well-defined, bounce-free output signals.
