TECH PUBLIC

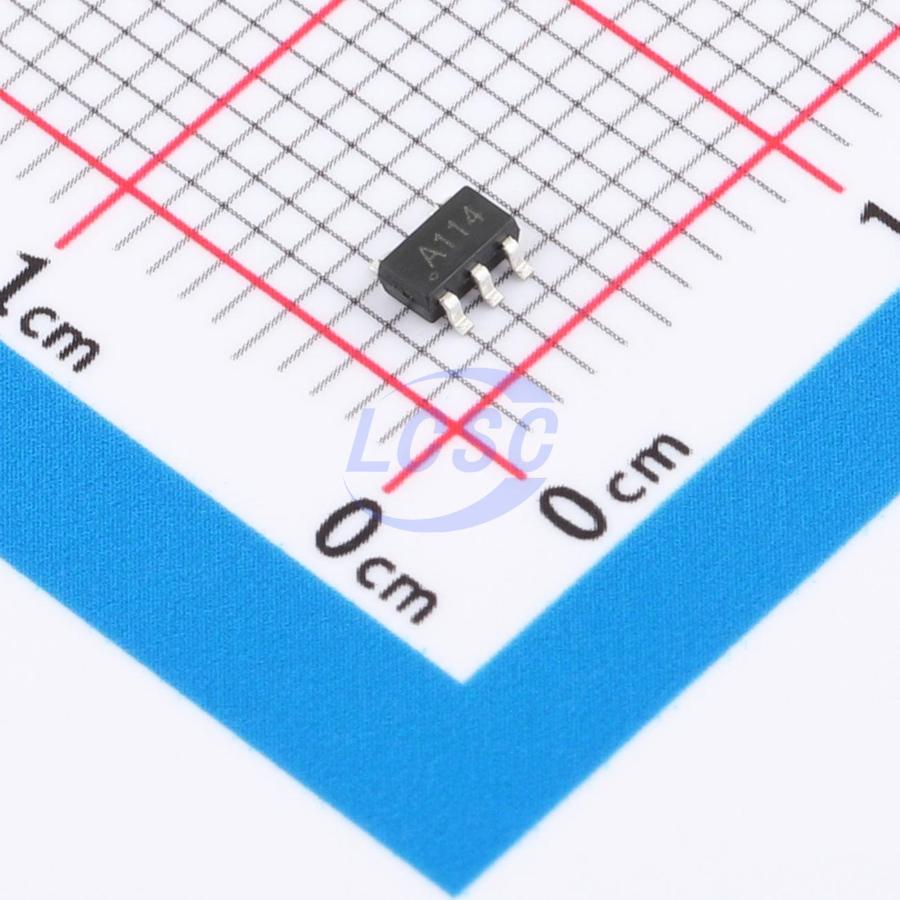

TP74AHC1G14S5

Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 40uA SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74AHC1G14S5
Store part #: C52205194
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C52205194

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹6.81	₹68.10
100+	₹5.37	₹537.00
300+	₹4.64	₹1,392.00
3,000+	₹4.10	₹12,300.00
6,000+	₹3.66	₹21,960.00
9,000+	₹3.44	₹30,960.00

Quantity (min 10, multiples of 10)

10 × ₹6.81

₹68.10

excl. GST

₹80.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74AHC1G14S5

₹68.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV;600mV
Propagation Delay: 10.6ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2V;2.9V;3V;4.4V;4.5V;2.58V;2.4V;3.94V;3.7V
Quiescent Current(Iq): 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The TP74AHC1G14 contains a single inverter with Schmitt-trigger input, with the logic function Y = Ā. The device provides inverting buffer functionality with Schmitt-trigger action, capable of converting slowly changing input signals into clean, bounce-free output signals.
