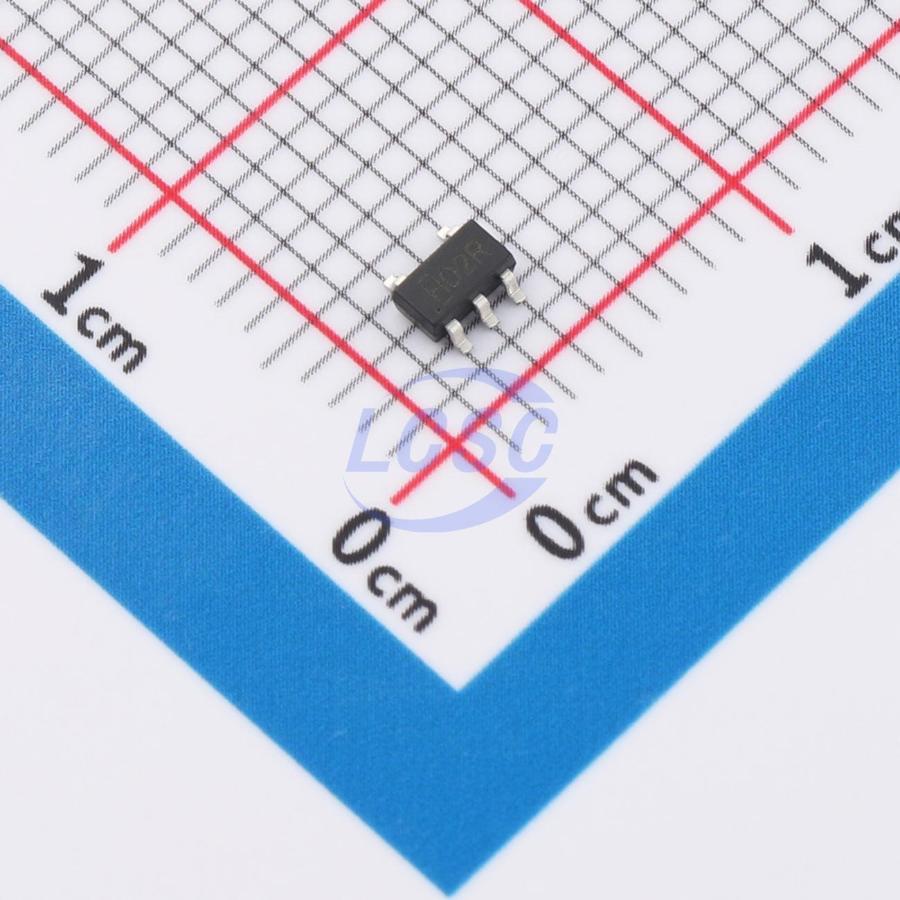

TECH PUBLICDatasheet (PDF)
TP74AUP1G02S5
500nA 800mV~3.6V 2.4ns@3.3V,5pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G02S5
- Store part #
- C49333191
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C49333191
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.62 | ₹58.10 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹7.98 | ₹1,197.00 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹6.34 | ₹19,020.00 |
| 6,000+ | ₹5.97 | ₹35,820.00 |
5 × ₹11.62
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G02S5
₹58.10 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 2.4ns@3.3V,5pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TP74AUP1G02 is a low-power single 2-input positive-logic NOR gate with the logic function Y = NOT(A OR B), or equivalently Y = (NOT A) AND (NOT B). This device is designed to ensure ultra-low static and dynamic power consumption across the entire VCC supply range of 0.8V to 3.6V.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headphones, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Input voltage tolerance up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; maximum I_CC of 0.5μA
- ESD protection exceeds JESD 22
- 2000V Human Body Model
- 200V Machine Model
- 1000V Charged Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUP1G02DBVR-TP#C49333169TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,890 | ₹9.84 · 2,890 in stock | View |
