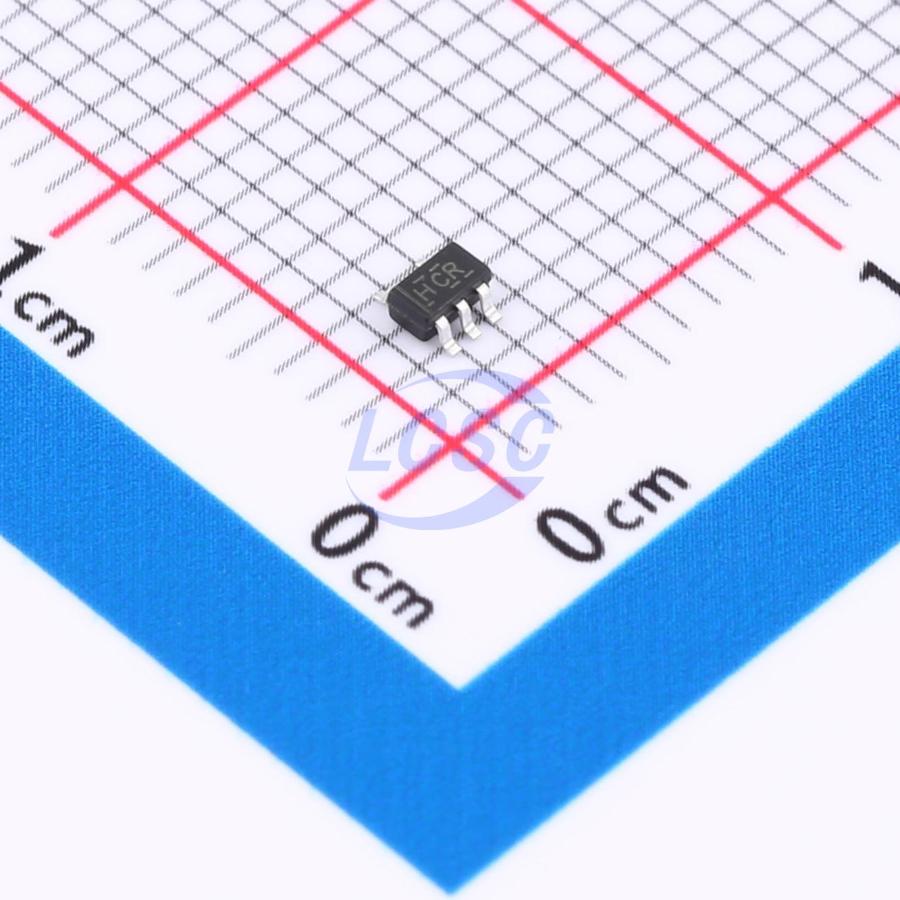

TP74AUP1G04C5
800mV~3.6V 2.1ns@3.3V,5pF 500nA 1 SOT353 Gates and Inverters RoHS
SOT353ROHS CompliantActive
SINGLE INVERTER GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G04C5
- Store part #
- C49231002
- Package / case
- SOT353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C49231002
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.58 | ₹57.90 |
| 50+ | ₹9.16 | ₹458.00 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 500+ | ₹7.04 | ₹3,520.00 |
| 3,000+ | ₹6.31 | ₹18,930.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹11.58
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G04C5
₹57.90 for 5 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 2.1ns@3.3V,5pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The TP74AUP1G04 is a single inverter gate, it provides the function Y = A(overline). This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Wide supply voltage range from 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I(OFF) supports partial-power-down mode
- Low static power consumption; ICC = 0.5μA (Max.)
- ESD Protection Exceeds JESD 22 - 2000 - V Human-Body Model (A114 - A)
- 200 - V Machine Model (A115 - A)
- 1000 - V Charged-Device Model (C101)
