TECH PUBLICDatasheet (PDF)

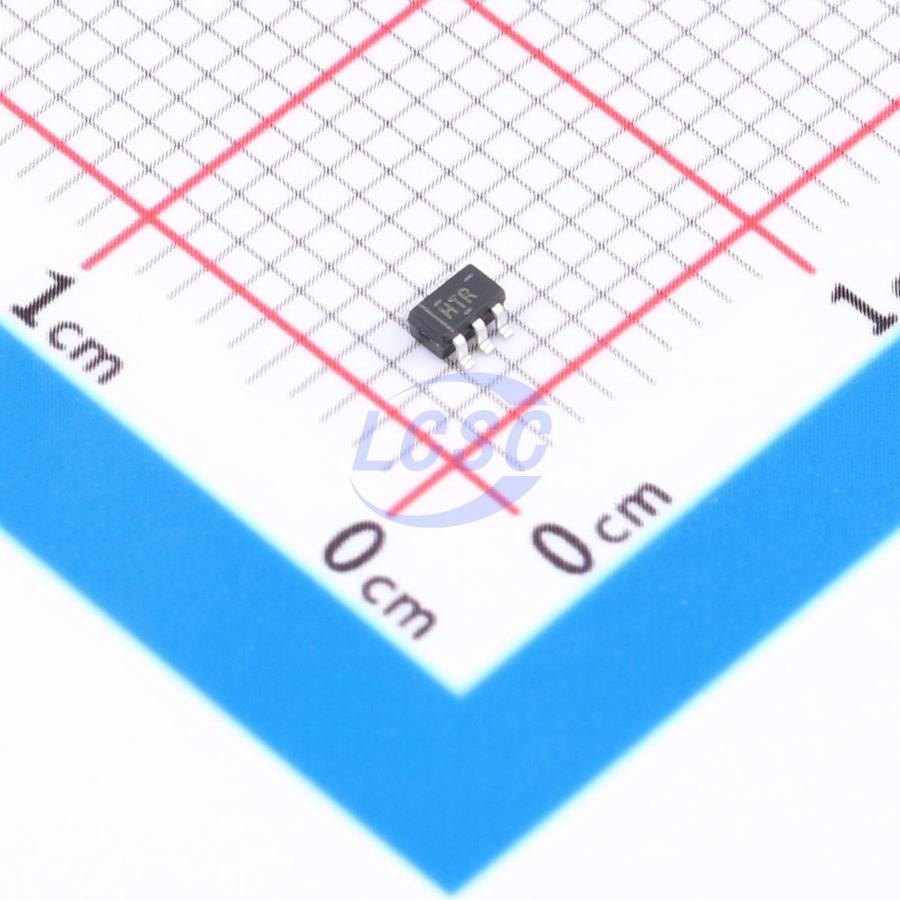

TP74AUP1G06C5
800mV~3.6V 6.5ns@3.3V,30pF 500nA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G06C5
- Store part #
- C51886134
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C51886134
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.85 | ₹59.25 |
| 50+ | ₹9.30 | ₹465.00 |
| 150+ | ₹8.02 | ₹1,203.00 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.91 | ₹35,460.00 |
5 × ₹11.85
₹59.25
excl. GST
₹69.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G06C5
₹59.25 for 5 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 6.5ns@3.3V,30pF
- Output Logic Level - Low
- 440mV
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The U74AUP1G06 is a single inverting buffer with open-drain output, implementing the logic function Y = NOT A in positive logic. The open-drain output structure allows connection with other open-drain outputs to realize active-low wired-OR or active-high wired-AND functions.
Applications
- AV receiver
- Audio dock
- Blu-ray player & home theater
- Embedded PC
- Personal digital assistant
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; maximum I_CC = 0.5μA
- ESD protection exceeds JESD 22
- Human Body Model: 2000V
- Machine Model: 200V
- Charged Device Model: 1000V
