TECH PUBLICDatasheet (PDF)

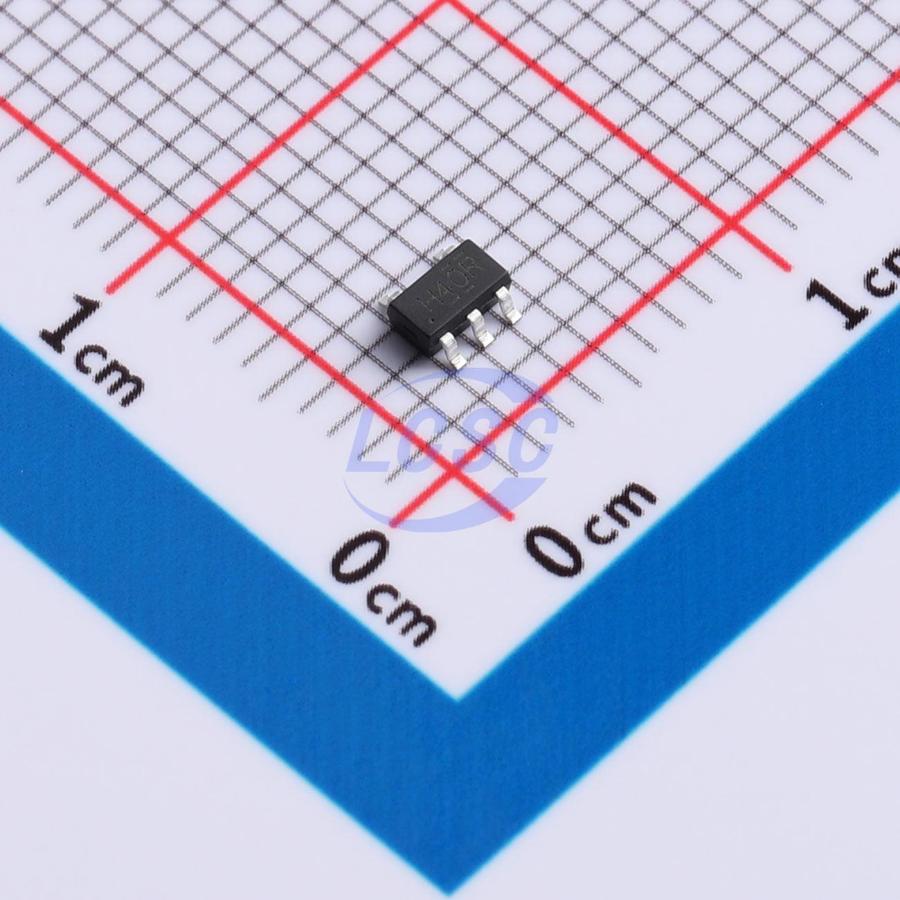

TP74AUP1G240S5
Schmitt trigger 800mV~3.6V 4.6ns@3.3V,30pF 500nA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G240S5
- Store part #
- C49333202
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,915 in stock
#C49333202
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.62 | ₹58.10 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹7.98 | ₹1,197.00 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹6.34 | ₹19,020.00 |
| 6,000+ | ₹5.97 | ₹35,820.00 |
5 × ₹11.62
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G240S5
₹58.10 for 5 + GST
Specifications
- output type
- Tri-State
- Logic Family
- 74AUP
- Input Type
- Schmitt trigger
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 4.6ns@3.3V,30pF
- Output Logic Level - Low
- 440mV
- Features
- Power shutdown protection;Noise suppression function
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TP74AUP1G240 is a single inverting buffer/line driver with 3-state output. The device features an output enable (OE) function. When OE is HIGH, the output is placed in a high-impedance off-state. All inputs incorporate Schmitt-trigger action, allowing the circuit to tolerate slow input rise and fall times.
Applications
- Audio receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22 standard
