TECH PUBLICDatasheet (PDF)

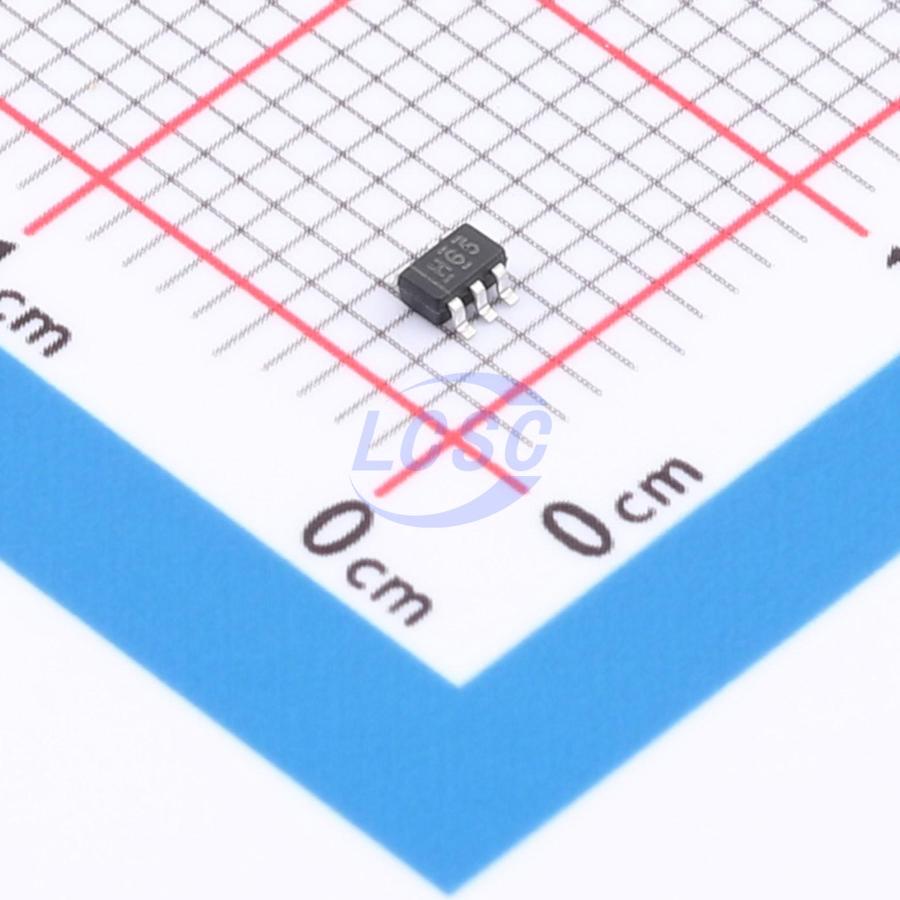

TP74AUP1G32C5
800mV~3.6V 7ns@3.3V,30pF 500nA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G32C5
- Store part #
- C51886131
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C51886131
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.52 | ₹65.20 |
| 100+ | ₹5.12 | ₹512.00 |
| 300+ | ₹4.42 | ₹1,326.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.47 | ₹20,820.00 |
| 9,000+ | ₹3.25 | ₹29,250.00 |
10 × ₹6.52
₹65.20
excl. GST
₹76.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G32C5
₹65.20 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 7ns@3.3V,30pF
- Output Logic Level - Low
- 310mV;440mV
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 1.11V;1.32V;1.9V;2.05V;2.6V;2.72V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
TP74AUP1G32 is a single 2-input OR gate that provides Y = A + B or Y = Ā + B̄ function in positive logic. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- AV receivers
- Portable audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
