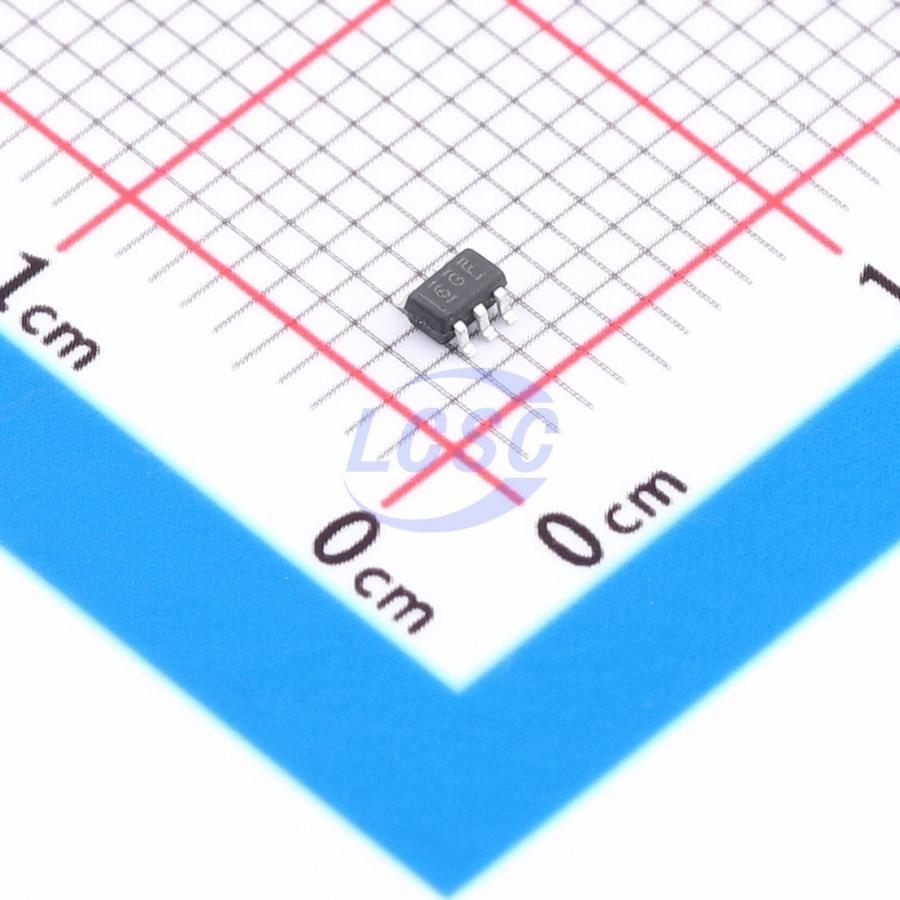

TP74AUP1T32C5

This device provides a single 2-input OR gate function, ensuring ultralow quiescent and dynamic power consumption across the entire VCC supply voltage range of 2.3V to 3.6V. It is designed for logic-level translation applications, with input switching levels that accept 1.8V low-voltage CMOS signals while operating from a 2.5V or 3.3V single supply. The wide supply voltage range ensures proper operation as battery voltage drops from 3.6V to 2.3V. Schmitt-trigger inputs provide tolerance for slow input rise and fall times across the entire VCC range.

Applications

• AV receivers
• Audio docks
• Blu-ray players
• Embedded PCs
• Solid-state drives

Key features

• Wide supply voltage range: 2.3V to 3.6V
• Inputs accept voltages up to 3.6V
• I_OFF supports partial power-down mode
• Low quiescent current; I_CC = 1.5μA (max)
• ESD protection exceeds JESD 22
