TECH PUBLIC

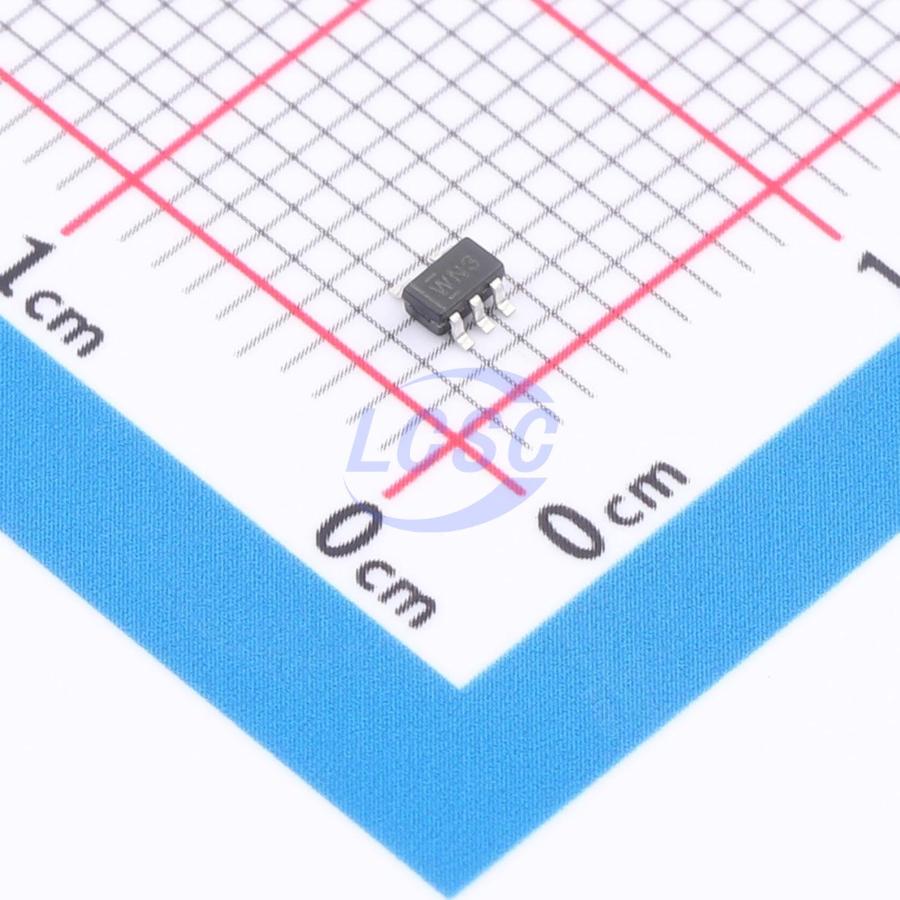

TP74LV1T126C5

SOT-353 Translators, Level Shifters

SOT-353RoHSActive

SINGLE BUFFER GATE WITH 3-STATE OUTPUT CMOS LOGIC LEVEL SHIFTER

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74LV1T126C5
Store part #: C48995591
Package / case: SOT-353
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,270 in stock

#C48995591

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.61	₹93.05
50+	₹14.70	₹735.00
150+	₹12.74	₹1,911.00
500+	₹11.27	₹5,635.00
3,000+	₹10.09	₹30,270.00
6,000+	₹9.50	₹57,000.00

Quantity (min 5, multiples of 5)

5 × ₹18.61

₹93.05

excl. GST

₹109.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74LV1T126C5

₹93.05 for 5 + GST

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

This device is a single-channel level-shifting buffer driver with tri-state output. The tri-state output is controlled by the output enable input (OE). When OE is low, the output enters a high-impedance state (disabled state). Output levels reference the supply voltage, supporting 1.8V, 2.5V, 3.3V, and 5.0V CMOS levels. Its low-threshold input supports 1.8V input logic at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V.

Applications

Audio docking stations: portable
Blu-ray players and home theater
Embedded PCs
Personal digital assistants
Power supplies: telecom/server AC/DC
SSDs: client and enterprise
Wireless headsets, keyboards, and mice

Key features

Operating voltage range: 1.6V to 5.5V
Low quiescent current: Icc=10μA (max)
Output drive capability: ±8mA (at VCC=5.0V)
Power-down protection
ESD protection exceeds JESD 22 standard: HBM 2000V (A114-A), MM 200V (A115-A), CDM 1000V (C101)
