TECH PUBLICDatasheet (PDF)

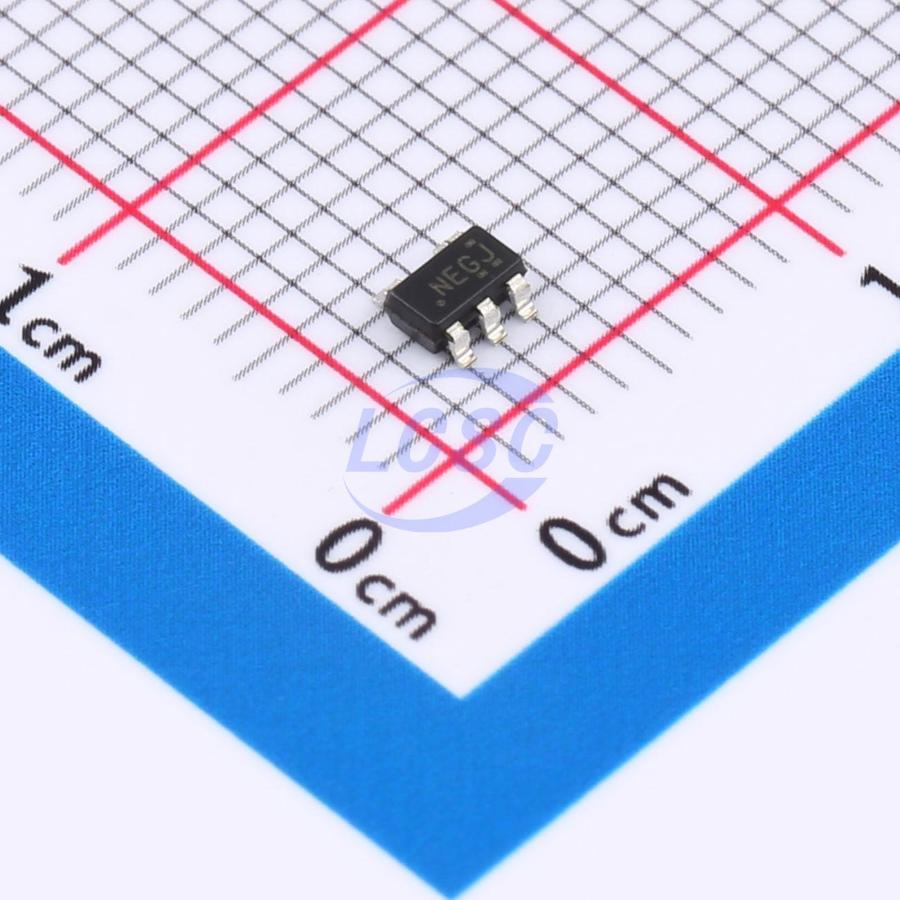

TP74LV1T32S5
SOT-23-5 Translators, Level Shifters
SOT-23-5RoHSActive
2-INPUT POSITIVE OR GATE CMOS LOGIC LEVEL SHIFTER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LV1T32S5
- Store part #
- C47117590
- Package / case
- SOT-23-5
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,100 in stock
#C47117590
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.63 | ₹73.15 |
| 50+ | ₹11.46 | ₹573.00 |
| 150+ | ₹9.88 | ₹1,482.00 |
| 500+ | ₹8.69 | ₹4,345.00 |
| 3,000+ | ₹7.74 | ₹23,220.00 |
| 6,000+ | ₹7.26 | ₹43,560.00 |
5 × ₹14.63
₹73.15
excl. GST
₹86.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LV1T32S5
₹73.15 for 5 + GST
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
A low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8V/2.5V/3.3V /5V CMOS levels.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server
- AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Operate from 1.6V to 5.5V
- Low Power Current: Icc = 10μA (Max.)
- ±8mA Output Drive (VCC = 5.0V)
- Power Down Protection
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
