TECH PUBLICDatasheet (PDF)

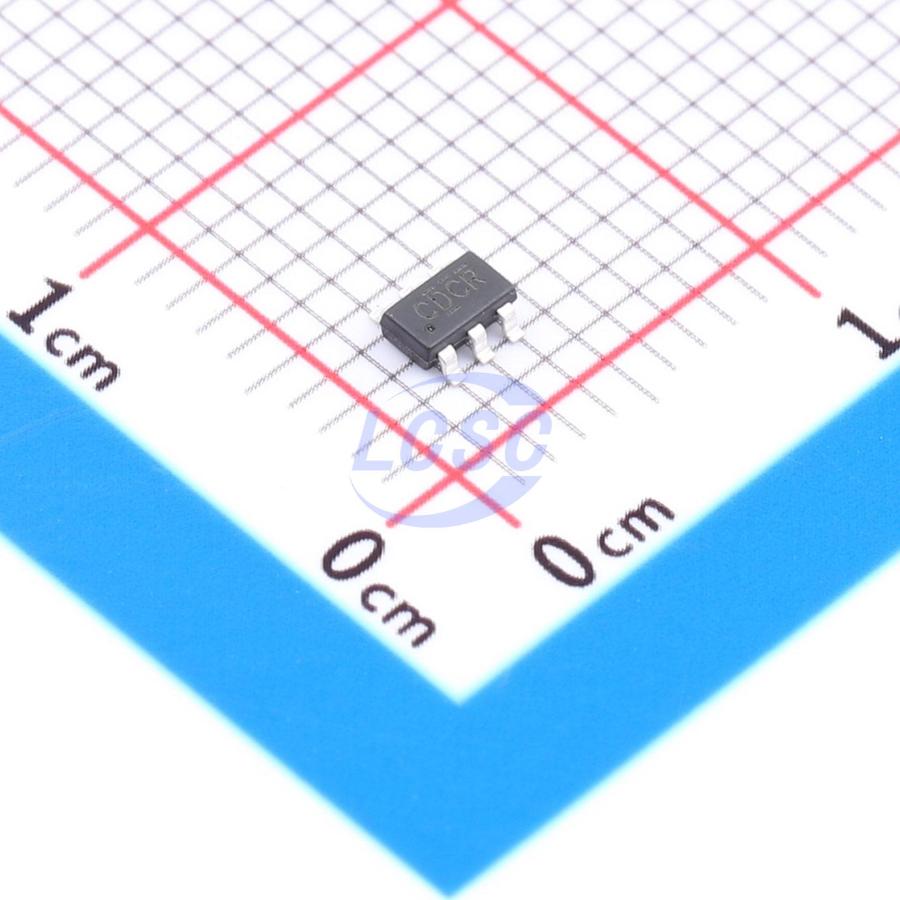

TP74LVC1G0832S6
10uA 1.65V~5.5V 17.5ns@1.8V,30pF SOT-23-6 Gates and Inverters RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G0832S6
- Store part #
- C51939624
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C51939624
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.63 | ₹63.15 |
| 50+ | ₹9.94 | ₹497.00 |
| 150+ | ₹8.59 | ₹1,288.50 |
| 500+ | ₹7.57 | ₹3,785.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.36 | ₹38,160.00 |
5 × ₹12.63
₹63.15
excl. GST
₹74.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G0832S6
₹63.15 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 17.5ns@1.8V,30pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The TP74LVC1G0832 is a single 3-input AND-OR gate. It performs the Boolean function Y = (A·B) + C. By connecting one input to GND or VCC, the device can provide two additional functions. When C is tied to GND, the device operates as a 2-input AND gate. When A is tied to VCC, the device operates as a 2-input OR gate. When B is tied to VCC, the device likewise operates as a 2-input OR gate.
Applications
- AV receivers
- Audio docking stations: portable
- Blu-ray players and home theaters
- Embedded PCs
- Personal digital assistants
- Power supplies: telecom/server AC/DC power supplies: single controller: analog and digital
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Inputs accept voltages up to 5.5V
- I_OFF supports partial power-down mode
- Low power consumption, maximum I CC of 10μA
- ESD protection exceeds JESD 22 standard
