TP74LVC1G08X5

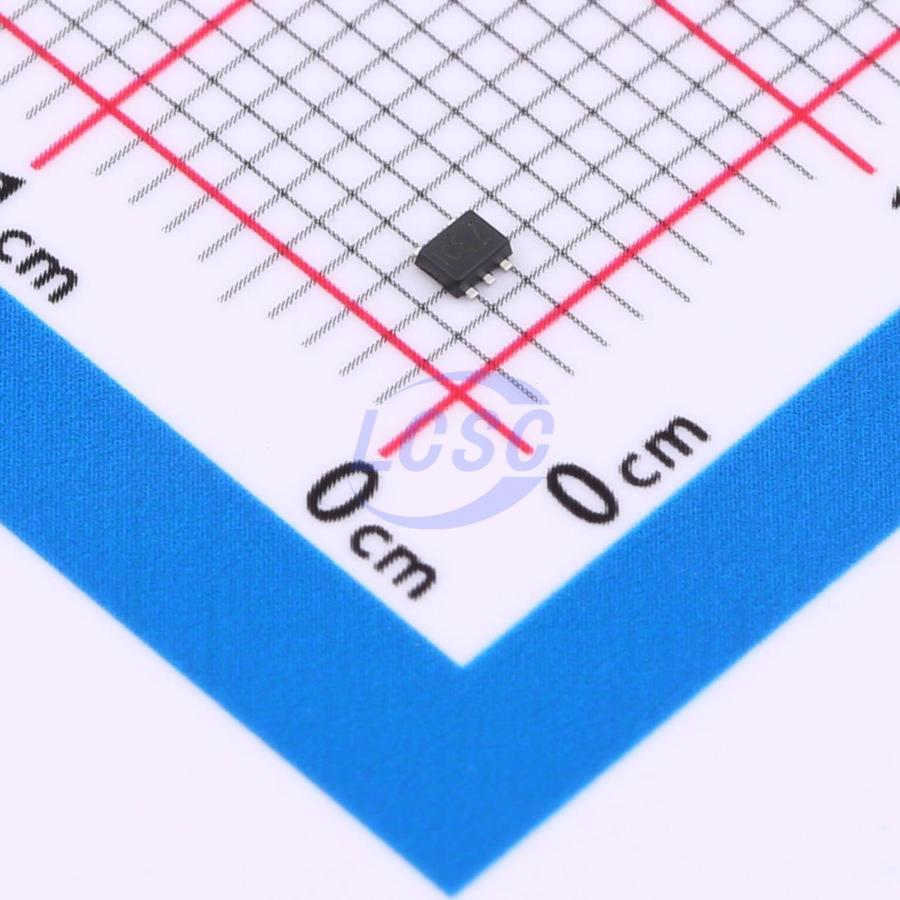

AND Gate IC SOT-553
SOT-553RoHSActive
SINGLE 2-INPUT POSITIVE-AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G08X5
- Store part #
- C48543228
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,705 in stock
#C48543228
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.05 | ₹55.25 |
| 50+ | ₹8.80 | ₹440.00 |
| 150+ | ₹7.67 | ₹1,150.50 |
| 500+ | ₹6.83 | ₹3,415.00 |
| 2,500+ | ₹6.17 | ₹15,425.00 |
| 4,000+ | ₹5.82 | ₹23,280.00 |
5 × ₹11.05
₹55.25
excl. GST
₹65.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP74LVC1G08X5
₹55.25 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;600mV;800mV
- Propagation Delay
- 9.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
TP74LVC1G08 is a 2-input AND gate with the logic function Y = A × B. The device features a power-off protection circuit to prevent damage during power-down conditions.
Applications
- Audio/video receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Telecom/server power supplies
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 1.65V to 5.5V
- Low quiescent current: Icc = 10μA (maximum)
- Output drive capability: ±24mA (at VCC = 3.0V)
- Power-off protection
- ESD protection exceeds JESD 22 standards
- Human Body Model: 2000-V (A114-A)
- Machine Model: 200-V (A115-A)
- Charged Device Model: 1000-V (C101)
Alternatives
Similar parts — check the datasheet before substituting.
