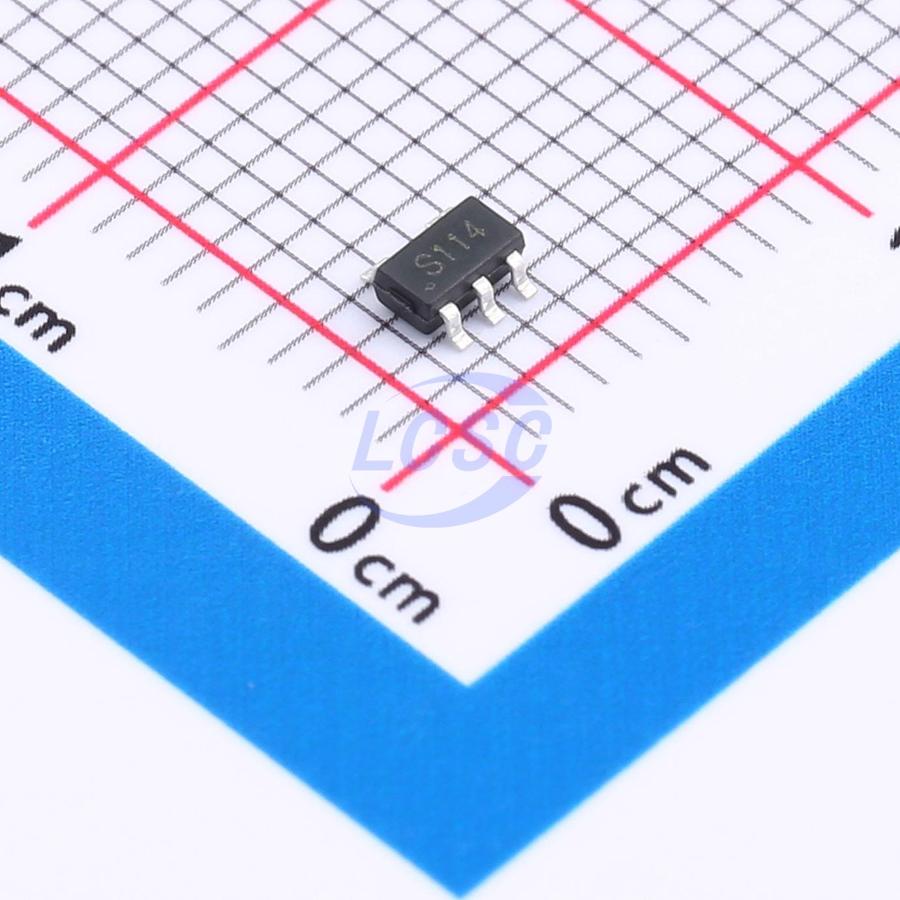

TP74LVC1G14S5

Schmitt trigger 1.65V~5.5V 4ns@4.5V,50pF 10uA 1 SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

SINGLE SCHMITT-TRIGGER INVERTER

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74LVC1G14S5
Store part #: C42460135
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,910 in stock

#C42460135

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.55	₹75.50
100+	₹5.97	₹597.00
300+	₹5.19	₹1,557.00
1,000+	₹4.59	₹4,590.00
5,000+	₹4.11	₹20,550.00
10,000+	₹3.88	₹38,800.00

Quantity (min 10, multiples of 10)

10 × ₹7.55

₹75.50

excl. GST

₹89.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74LVC1G14S5

₹75.50 for 10 + GST

Specifications

Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4ns@4.5V,50pF
Output Logic Level - Low: 330mV~550mV
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.3V~2.62V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 24mA
Number of Channels: 1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The TP74LVC1G14 is a single Schmitt-trigger inverter, it provides the function v = A (overline). The device have different input threshold levels for positive going (VT+) and negative-going (VT-) signals because of the Schmitt-trigger action in the input.

Applications

AV Receiver
Audio Dock:Portable
Blu-ray Player and Home Theater
Embedded PC
Personal Digital Assistant(PDA)
Power:Telecom/Server AC/DC Supply:Single
Controller:Analog and Digital

Key features

Operation Voltage Range: 1.65 V to 5.5 V
Power Down Protection ±24 mA
Output Drive (VCC = 3.0 V)
Low Power Consumption, 10 μA Max ICC
ESD Protection Exceeds JESD 22 -2000-V Human-Body Model (A114-A) - 200-V Machine Model (A115-A) -1000-V Charged-Device Model (C101)
