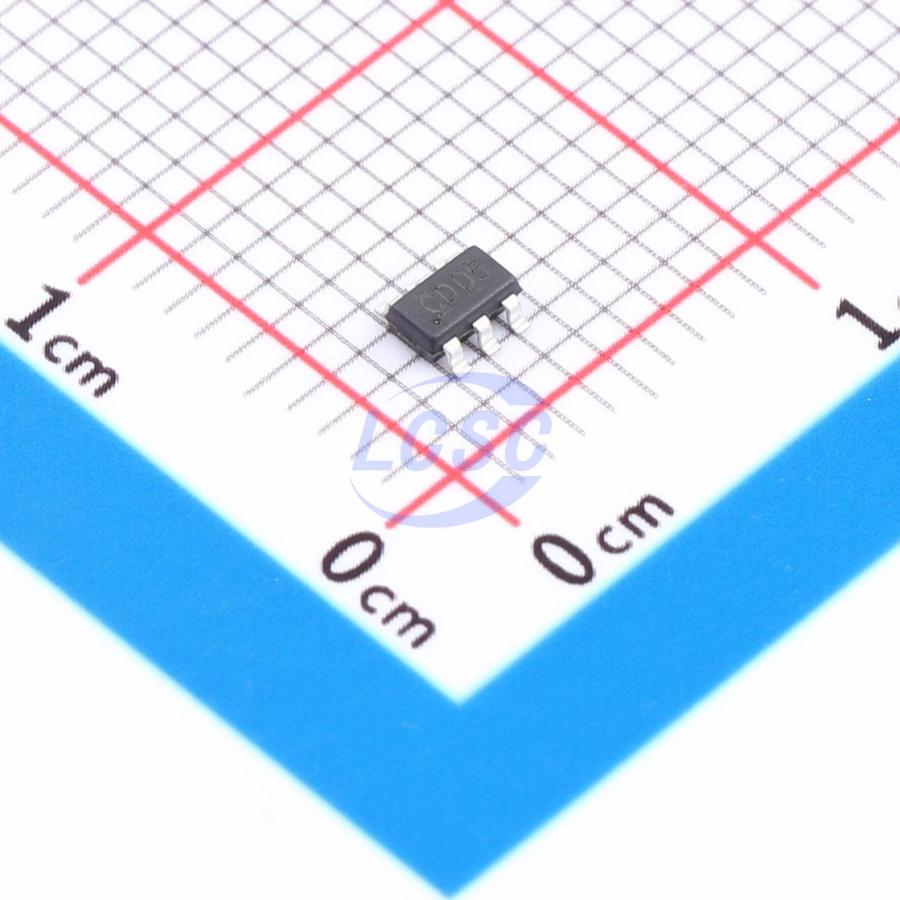

TP74LVC1G3208S6

10uA 1.65V~5.5V 6.5ns@5V,50pF SOT-23-6 Gates and Inverters RoHS

SOT-23-6ROHS CompliantActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74LVC1G3208S6
Store part #: C51939626
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,900 in stock

#C51939626

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.52	₹62.60
50+	₹9.84	₹492.00
150+	₹8.49	₹1,273.50
500+	₹7.49	₹3,745.00
3,000+	₹6.69	₹20,070.00
6,000+	₹6.28	₹37,680.00

Quantity (min 5, multiples of 5)

5 × ₹12.52

₹62.60

excl. GST

₹73.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74LVC1G3208S6

₹62.60 for 5 + GST

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Logic Family: 74LVC
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.2V;1.9V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;3
Current - Output High(IOH): 32mA
Propagation Delay: 6.5ns@5V,50pF
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

The TP74LVC1G3208 device is a single 3-input positive-logic OR-AND gate. It performs the Boolean function Y = (A + B) × C. By connecting one input to GND or VCC, the device can provide two additional functions. When C is connected to VCC, the device operates as a 2-input OR gate (Y = A + B). When A is connected to GND, the device operates as a 2-input AND gate (Y = B × C). When B is connected to GND, the device can also operate as a 2-input AND gate (Y = A × C).

Applications

AV receiver
Audio dock
Blu-ray player & home theater
Embedded PC
Personal digital assistant

Key features

Wide supply voltage range: 1.65V to 5.5V
5V Vcc operation supported
I<sub>OFF</sub> supports partial power-down mode
Low power consumption, I<sub>CC</sub> = 10μA (max)
ESD protection exceeds JESD 22: 2000V HBM (A114-A), 200V MM (A115-A), 1000V CDM (C101)
