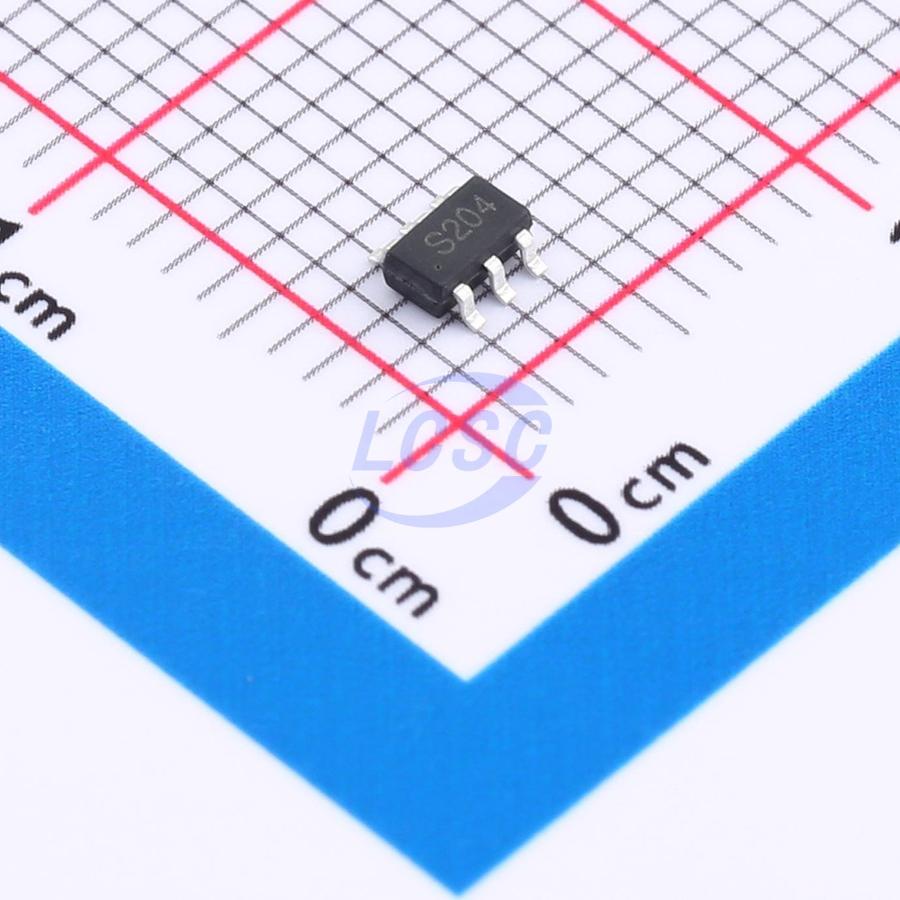

TP74LVC2G04S6
1.65V~5.5V 1.9ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
DUAL INVERTER GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC2G04S6
- Store part #
- C42460199
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C42460199
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.58 | ₹62.90 |
| 50+ | ₹9.95 | ₹497.50 |
| 150+ | ₹8.63 | ₹1,294.50 |
| 500+ | ₹7.65 | ₹3,825.00 |
| 2,500+ | ₹6.85 | ₹17,125.00 |
| 5,000+ | ₹6.46 | ₹32,300.00 |
5 × ₹12.58
₹62.90
excl. GST
₹74.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC2G04S6
₹62.90 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 1.9ns@5V,50pF
- Features
- Power shutdown protection;Power-off protection function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TP74LVC2G04 is a dual inverter gate, it provides the function Y = ¬A. This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock: Portable
- IP Phones: Wired and Wireless
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom DC/DC Module: Analog and Digital
Key features
- Operation voltage range: 1.65~5.5V
- Inputs Accept Voltages up to 5.5 V Allowing Down Translation to VCC
- ±24 mA output drive (VCC = 3.3V)
- Low Power Consumption, 10 μA Max ICC
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
