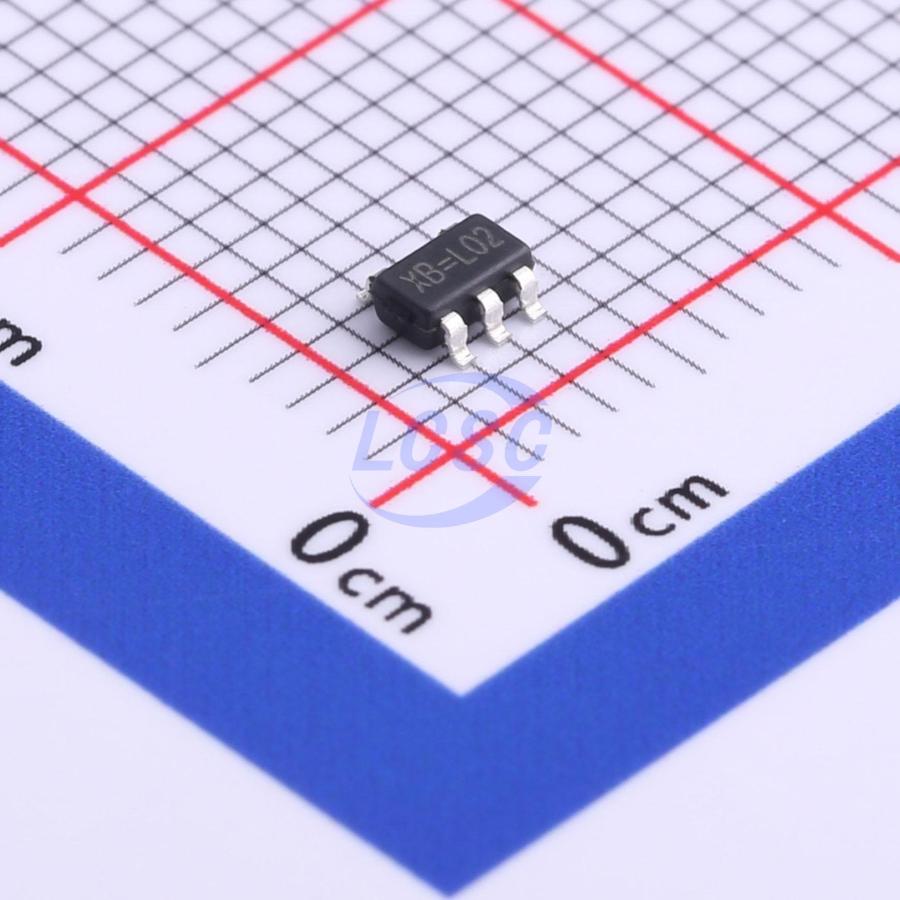

TP9001-18S5
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP9001-18S5
- Store part #
- C708761
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C708761
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.49 | ₹94.90 |
| 100+ | ₹7.61 | ₹761.00 |
| 300+ | ₹6.67 | ₹2,001.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹9.49
₹94.90
excl. GST
₹111.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP9001-18S5
₹94.90 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.11 g
Overview
The TP9001 is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TP9001 is available in 5pin SOT23-5 Package. the output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9013-18GB#C22435116TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 13,190 | ₹11.25 · 13,190 in stock | View |
 | TP2028-1.8YN5G#C2937005TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 860 | ₹11.64 · 860 in stock | View |
 | WL2803E18#C41408120TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,360 | ₹13.42 · 1,360 in stock | View |
 | TPRT9013-18GB#C708766TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 985 | ₹12.00 · 985 in stock | View |
 | TP5108E23E-18#C907845TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 18,345 | ₹12.61 · 18,345 in stock | View |
