TECH PUBLICDatasheet (PDF)

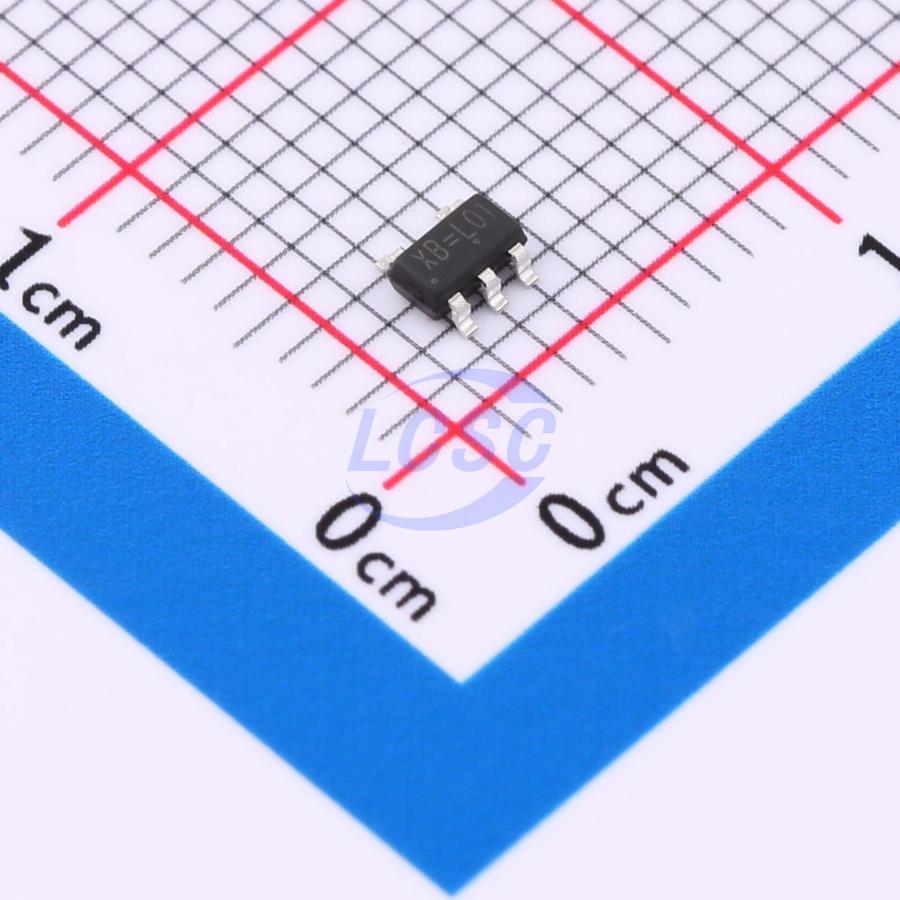

WL2803E18
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- WL2803E18
- Store part #
- C41408120
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,360 in stock
#C41408120
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.42 | ₹67.10 |
| 50+ | ₹10.54 | ₹527.00 |
| 150+ | ₹9.10 | ₹1,365.00 |
| 500+ | ₹8.03 | ₹4,015.00 |
| 2,500+ | ₹7.17 | ₹17,925.00 |
| 5,000+ | ₹6.73 | ₹33,650.00 |
5 × ₹13.42
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2803E18
₹67.10 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The WL2803E is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements.
Applications
- CDM/GSM mobile phone
- PDAs/MP3
- Audio/Video equipment
Key features
- Quiescent Current: 60uA
- PSRR: 75dB@1KHz
- < 1uA current at shutdown mode
- Output voltage accuracy: tolerance ± 2%
- Output current: 500mA(Typ.)
- SOT23-5 package
- The WL2803E is available in 5pin SOT23-5 Package. the output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9013-18GB#C22435116TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 13,190 | ₹11.25 · 13,190 in stock | View |
 | TP2028-1.8YN5G#C2937005TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 860 | ₹11.64 · 860 in stock | View |
 | TP9001-18S5#C708761TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,950 | ₹9.49 · 2,950 in stock | View |
 | TPRT9013-18GB#C708766TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 985 | ₹12.00 · 985 in stock | View |
 | TP5108E23E-18#C907845TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 18,345 | ₹12.61 · 18,345 in stock | View |
