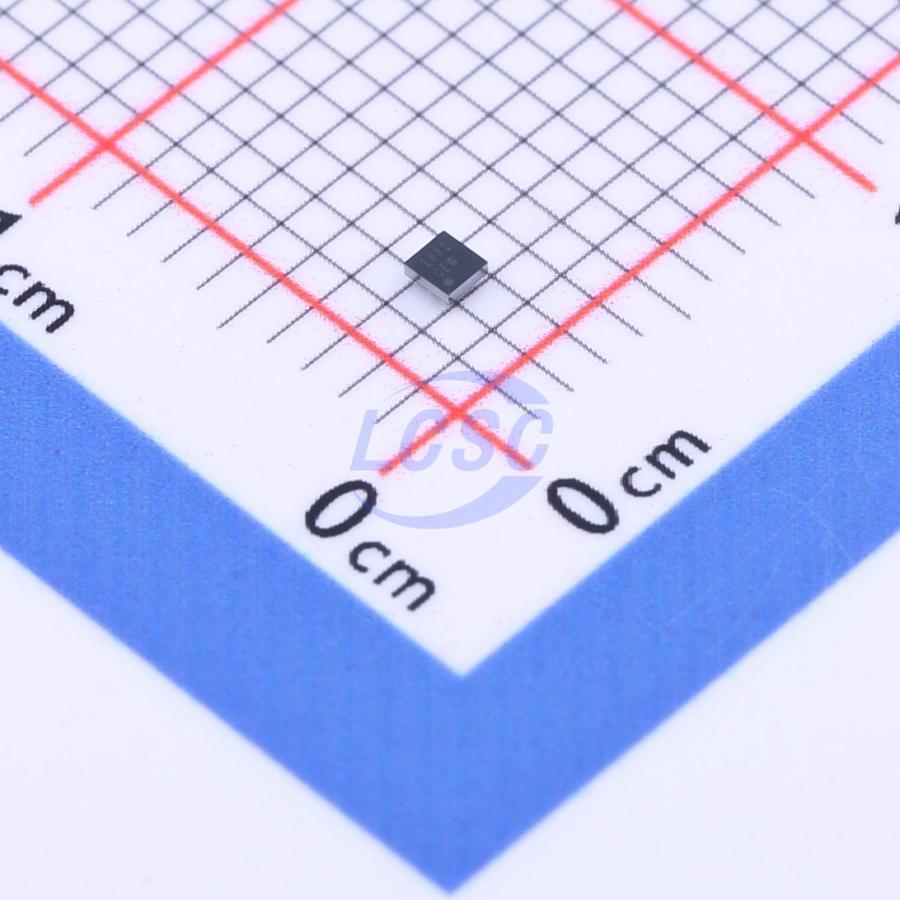

TPA2011D1YFFR
1.5mA 2.5V~5.5V 1-Channel 3.24Wx1@4Ω Class D DSBGA-9 Audio Amplifiers RoHS
Mono Filter-Free Class-D Audio Power Amplifier With Auto-Recovering Short-Circuit Protection
- Manufacturer
- TI
- Manufacturer part #
- TPA2011D1YFFR
- Store part #
- C468251
- Package / case
- DSBGA-9
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,316 in stock
#C468251
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.60 | ₹92.60 |
| 10+ | ₹75.21 | ₹752.10 |
| 30+ | ₹66.51 | ₹1,995.30 |
| 100+ | ₹57.82 | ₹5,782.00 |
| 500+ | ₹52.81 | ₹26,405.00 |
| 1,000+ | ₹50.00 | ₹50,000.00 |
1 × ₹92.60
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPA2011D1YFFR
₹92.60 for 1 + GST
Specifications
- Quiescent Current
- 1.5mA
- Voltage - Supply
- 2.5V~5.5V
- Features
- Filterless architecture;Built-in audio processing;Enable/shutdown function;ESD protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.05%
- Operating Temperature
- -40℃~+85℃
- Number of Inputs
- 1 Pair Differential Inputs
- Speaker Channels
- 1-Channel
- Efficiency
- 95%
- Output Power
- 3.24Wx1@4Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- 86dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.015 g
Overview
The TPA2011D1 is a 3.2-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1.21 mm × 1.16 mm wafer chip scale package (DSBGA) that requires only three external components. Features like 95% efficiency, 86-dB PSRR, 1.5 mA quiescent current and improved RF immunity make the TPA2011D1 class-D amp ideal for cellular handsets. A fast start-up time of 4 ms with no audible turn-on pop makes the TPA2011D1 ideal for PDA and smart-phone applications. The TPA2011D1 allows independent gain while summing signals from separate sources, and has a low 20 μV noise floor.
Applications
- Wireless or Cellular Handsets and PDAs
- Portable Navigation Devices
- General Portable Audio Devices
Key features
- Powerful Mono Class-D Amplifier
- 3.24 W (4 Ω, 5 V, 10% THDN) – 2.57 W (4 Ω, 5 V, 1% THDN)
- 1.80 W (8 Ω, 5 V, 10% THDN)
- 1.46 W (8 Ω, 5 V, 1% THDN)
- Integrated Feedback Resistor of 300 kΩ
- Integrated Image Reject Filter for DAC Noise Reduction
- Low Output Noise of 20 μV
- Low Quiescent Current of 1.5 mA
- Auto Recovering Short-Circuit Protection
- Thermal Overload Protection
- 9-Ball, 1.21mm x 1.16 mm 0.4 mm Pitch DSBGA
