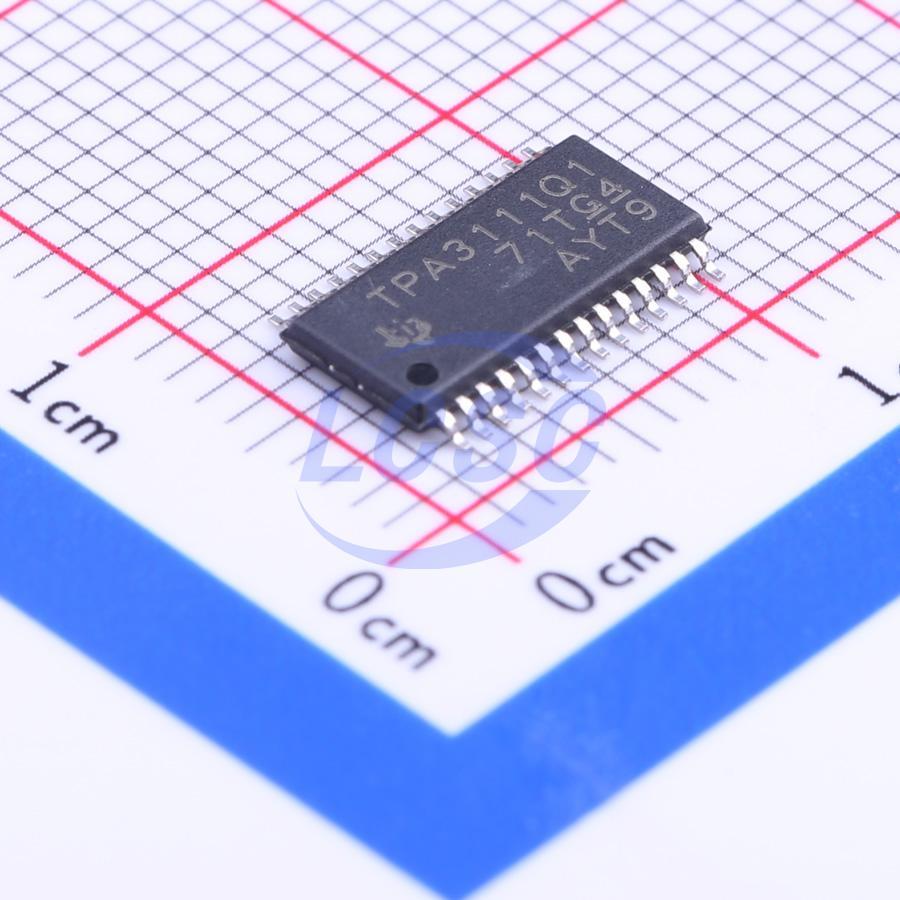

TPA3111D1QPWPRQ1

40mA 8V~26V 1-Channel 10Wx1@8Ω Class D HTSSOP-28 Audio Amplifiers RoHS

HTSSOP-28ROHS3 CompliantActive

10W Filterless Mono Class-D Audio Power Amplifier with Speakerguard

Manufacturer: TI
Manufacturer part #: TPA3111D1QPWPRQ1
Store part #: C130045
Package / case: HTSSOP-28
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,907 in stock

#C130045

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹300.89	₹300.89
10+	₹252.27	₹2,522.70
30+	₹221.87	₹6,656.10
100+	₹190.83	₹19,083.00
500+	₹176.94	₹88,470.00
1,000+	₹170.85	₹1,70,850.00

Quantity (min 1)

1 × ₹300.89

₹300.89

excl. GST

₹355.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPA3111D1QPWPRQ1

₹300.89 for 1 + GST

Specifications

Quiescent Current: 40mA
Voltage - Supply: 8V~26V
Features: Filterless architecture;Digitally programmable gain;Enable/shutdown function;ESD protection;Automatic mute/no-noise switch
Total Harmonic Distortion + Noise (THD+N): 0.05%
Operating Temperature: -40℃~+125℃
Signal-to-Noise Ratio: 102dB
Number of Inputs: 1 Pair Differential Inputs
Speaker Channels: 1-Channel
Efficiency: 94%
Output Power: 10Wx1@8Ω
Class: Class D
Power Supply Rejection Ratio (PSRR): 70dB

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.261 g

Overview

The TPA3111D1-Q1 device is a 10W high-efficiency Class-D audio power amplifier for driving bridge-tied load (BTL) speakers. Advanced EMI suppression technology enables users to use low-cost bead filters at the output while meeting EMC requirements. The SpeakerGuard protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows users to set a virtual voltage rail below the chip's supply voltage to limit the amount of power through the speaker. The DC detection circuit can measure the frequency and amplitude of the PWM signal and will turn off the output stage if the input capacitor is damaged or there is a short circuit at the input. The TPA3111D1-Q1 can drive a single-channel speaker down to 4Ω. When playing music, the TPA3111D1-Q1 device's high efficiency of over 90% eliminates the need for an external heat sink. The output is fully protected against short circuits to GND, VCC, and output-to-output. Both short-circuit protection and thermal protection have automatic recovery features.

Applications

Automotive noise generation for HEV/EV
Automotive eCall systems
Automotive infotainment (head unit, instrument cluster, telematics, navigation)
Automotive connectivity gateway
Professional audio equipment (PA speakers, studio headphones, high-performance amplifiers, high-grade microphones)

Key features

Automotive electronics application certification with the following AEC-Q100 compliant results:
Device temperature grade 1: ambient operating temperature range of -40°C to 125°C
Device HBM ESD classification level H2
Device CDM ESD classification level C2
10W into 8Ω load from a 12V supply (at 10% THD+N)
7W into 4Ω load from an 8V supply (at 10% THD+N)
94% efficient Class-D operation into 8Ω load eliminates the need for a heatsink
Wide supply voltage range allows operation from 8V to 26V
Filterless operation
SpeakerGuard speaker protection includes adjustable power limiter and DC protection
Pass-through external pins simplify PCB layout design
