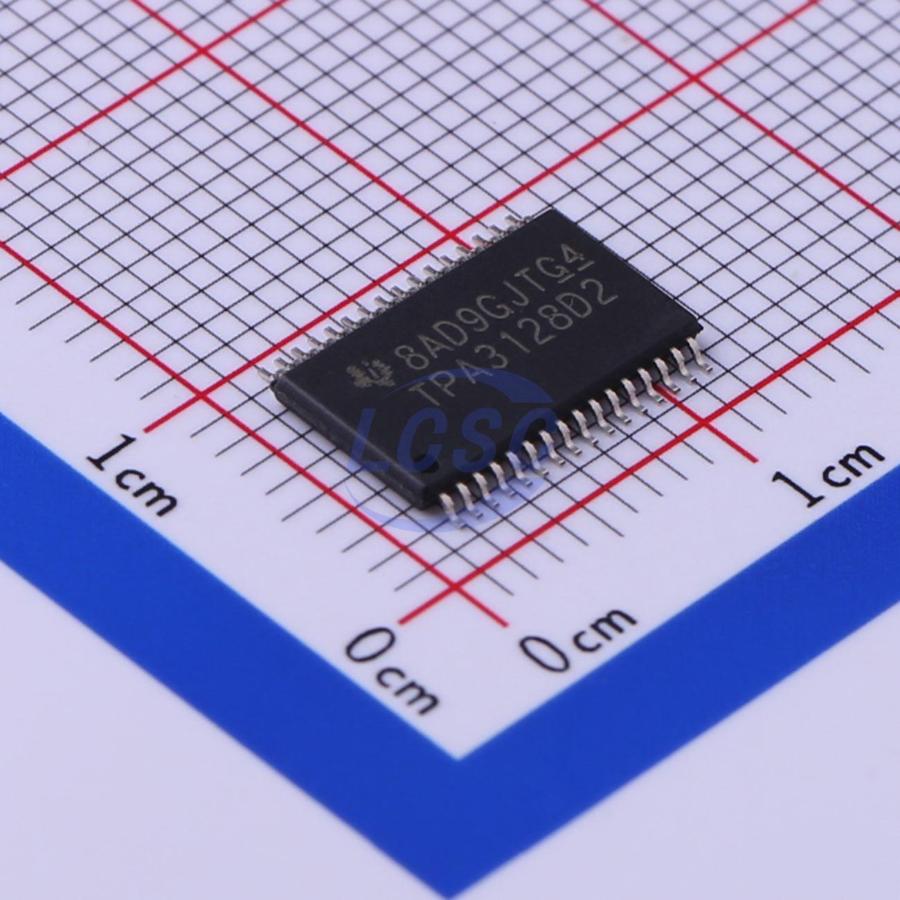

TPA3128D2DAPR

The TPA3128D2 and TPA3129D2 have low idle power loss and helps to extend the battery life of Bluetooth/Wireless speakers and other batterypowered audio systems. The high efficiency of the TPA3128D2 device allows it to do 2 x 30 W without external heat sink on a dual layer PCB. The high efficiency of the TPA3129D2 device allows it to do 2 x 15 W without external heat sink on a dual layer PCB. This device proposed an efficiency boost Mode, which can dynamically reduced the current ripple of the external LC filter and the idle current. The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences, which is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices. The TPA31xxD2 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage, and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.

Applications

• Bluetooth/Wireless Speakers
• Soundbars
• Mini-Micro Component, Docks
• LCD/LED TVs Home Theaters

Key features

• Supports Multiple Output Configurations
• 2 x 30 W Into a 8-Ω BTL Load at 24 V (TPA3128D2)
• 2 x 15 W Into a 8-Ω BTL Load at 15 V (TPA3129D2)
• Wide Voltage Range: 4.5 V to 26 V
• Efficient Class-D Operation
• Very Low Idle Current: < 23 mA for recommended LC filter configurations
• Greater than 90% Power Efficiency Combined With Low Idle Loss Greatly Eliminates Need for Heat Sink
• Adaptive Modulation Schemes based on Output Power
• Smart Amplifier Drivers to Reduce the Requirement for RC Snubbers
• Multiple Switching Frequencies
• AM Avoidance Master and Slave Synchronization 300-KHz to 1.2-MHz Switching Frequency
