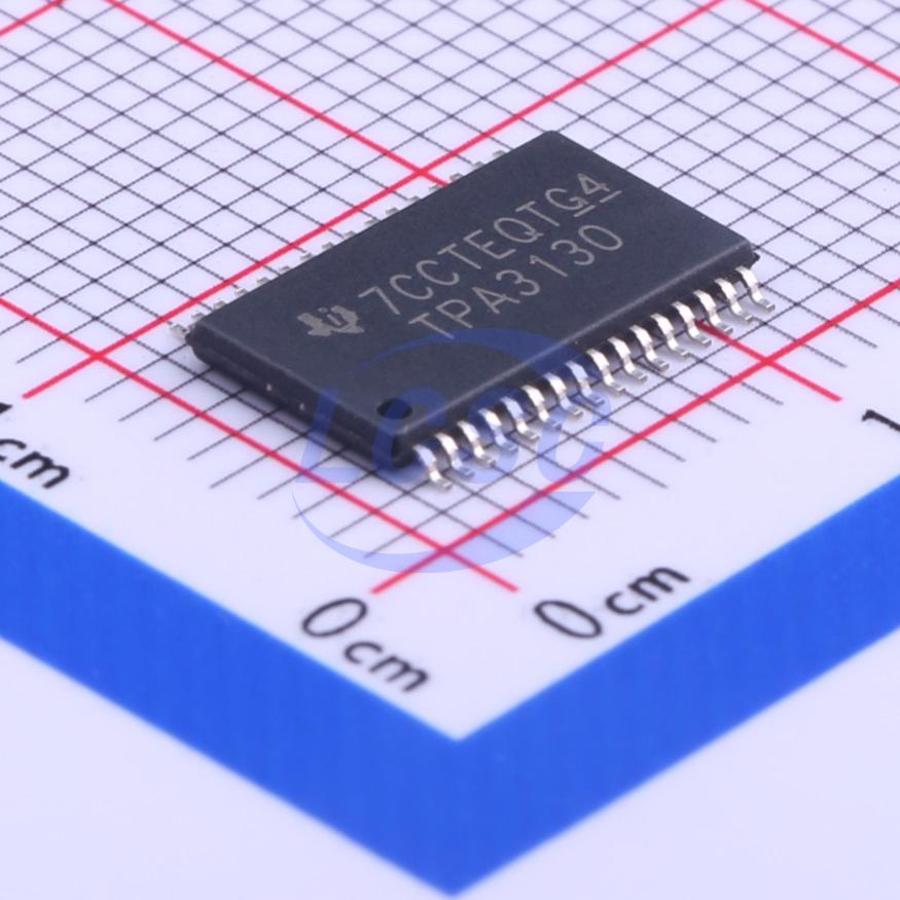

TPA3130D2DAPR

35mA 4.5V~26V 2-Channel 15Wx2@8Ω Class D HTSSOP-32-EP-6.1mm Audio Amplifiers RoHS

HTSSOP-32-EP-6.1mmROHS3 CompliantActive

Filter-Free Class-D Stereo Amplifier Family With AM Avoidance Features

Manufacturer: TI
Manufacturer part #: TPA3130D2DAPR
Store part #: C95206
Package / case: HTSSOP-32-EP-6.1mm
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,362 in stock

#C95206

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹127.43	₹127.43
10+	₹105.95	₹1,059.50
30+	₹95.31	₹2,859.30
100+	₹84.67	₹8,467.00
500+	₹78.16	₹39,080.00
1,000+	₹74.91	₹74,910.00

Quantity (min 1)

1 × ₹127.43

₹127.43

excl. GST

₹150.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPA3130D2DAPR

₹127.43 for 1 + GST

Specifications

Quiescent Current: 35mA
Voltage - Supply: 4.5V~26V
Features: Filterless architecture;Integrated PLL;Overvoltage protection;ESD protection;Enable/shutdown function
Total Harmonic Distortion + Noise (THD+N): 0.1%
Operating Temperature: -40℃~+85℃
Signal-to-Noise Ratio: 102dB
Speaker Channels: 2-Channel
Efficiency: 90%
Output Power: 15Wx2@8Ω
Class: Class D
Power Supply Rejection Ratio (PSRR): -70dB

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.589 g

Overview

The TPA31xxD2 series are stereo efficient, digital amplifier power stage for driving speakers up to 100 W / 2 Ω in mono. The high efficiency of the TPA3130D2 allows it to do 2×15 W without external heat sink on a single layer PCB. The TPA3118D2 can even run 2 × 30 W / 8 Ω without heat sink on a dual layer PCB. If even higher power is needed the TPA3116D2 does 2 × 50 W / 4 Ω with a small heatsink attached to its top side PowerPAD. All three devices share the same footprint enabling a single PCB to be used across different power levels. The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices. The TPA31xxD2 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage, and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.

Applications

Mini-Micro Component
Speaker Bar
Docks
After-Market Automotive
CRT TV
Consumer Audio Applications

Key features

Supports Multiple Output Configurations – 2×50 W Into a 4-Ω BTL Load at 21 V (TPA3116D2), 2×30 W Into a 8-Ω BTL Load at 24 V (TPA3118D2), 2×15 W Into a 8-Ω BTL Load at 15 V (TPA3130D2)
Wide Voltage Range: 4.5 V to 26 V
Efficient Class-D Operation – >90% Power Efficiency Combined With Low Idle Loss Greatly Reduces Heat Sink Size
Advanced Modulation Schemes
Multiple Switching Frequencies – AM Avoidance
Master and Slave Synchronization – Up to 1.2-MHz Switching Frequency
Feedback Power-Stage Architecture With High PSRR Reduces PSU Requirements
Programmable Power Limit
Differential and Single-Ended Inputs
Stereo and Mono Mode With Single-Filter Mono Configuration
Single Power Supply Reduces Component Count
Integrated Self-Protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DCDetect, and Short Circuit With Error Reporting
Thermally Enhanced Packages – DAD (32-Pin HTSSOP Pad Up) – DAP (32-Pin HTSSOP Pad Down)
-40°C to 85°C Ambient Temperature Range
