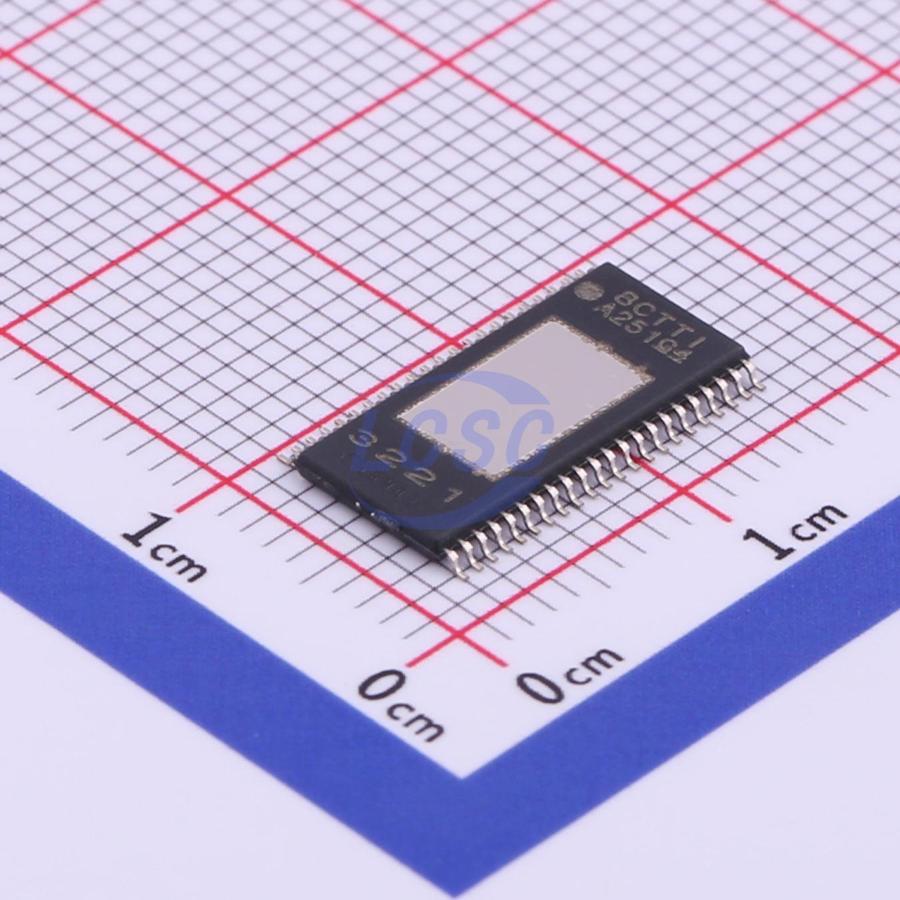

TPA3221DDVR

TPA3221 is a high-power Class-D amplifier that enables efficient operation at full-power, idle and standby. The device features closed-loop feedback with a bandwidth up to 100 kHz, which provides low distortion across the audio band and delivers excellent sound quality. The device operates with either AD or low idle-current HEAD (High Efficient AD mode) modulation, and can drive up to 2×105 W into 4-Ω load or 1×208 W into 2-Ω load. The TPA3221 features a single-ended or differential analog-input interface that supports up to 2 VRMS with four selectable gains: 18 dB, 24 dB, 30 dB and 34 dB. The TPA3221 also achieves >90% efficiency, low idle power (<0.25 W) and ultra-low standby power (<0.1 W). This is made possible through the use of 70 mΩ MOSFETs, an optimized gate drive scheme and low-power operating modes. TPA3221 includes a built-in LDO for easy integration in single-powersupply systems. To further simplify the design, the device integrates essential protection features including undervoltage, overvoltage, cycle-by-cycle current limit, short circuit, clipping detection, overtemperature warning and shutdown, as well as DC speaker protection.

Applications

• Wireless and Powered Speakers
• Soundbars
• Subwoofers
• Bookshelf Stereo Systems
• Professional and Public Address (PA) Speakers

Key features

• Wide 7-V to 30-V Supply Voltage Operation
• Stereo (2×BTL) and Mono (1 x PBTL) Operation
• Output Power at 10% THD+N
• 105-W Stereo into 4 Ω in BTL Configuration
• 112-W Stereo into 3 Ω in BTL Configuration
• 208-W Mono into 2 Ω in PBTL Configuration
• Output Power at 1% THD+N
• 88-W Stereo into 4 Ω in BTL Configuration
• 100-W Stereo into 3 Ω in BTL Configuration
• 170-W Mono into 2 Ω in PBTL Configuration
• 5-V Gate Drive or Built-in LDO for Optional SingleSupply Operation
• Closed-Loop Feedback Design
• Signal Bandwidth up to 100 kHz for HighFrequency Content From HD Sources
• 0.02% THD+N at 1 W into 4 Ω
• 60-dB PSRR (BTL, No Input Signal)
• <75-μV Output Noise (A-Weighted)
• >108 -dB SNR (A-Weighted)
• AD or HEAD Modulation Schemes
• Low-Power Operating Modes
• Standby Modes: Mute and < 1 mA Shutdown
• Low Idle-Current HEAD Modulation Scheme
• Single-Channel BTL Operation
• Multiple Input Options to Simplify Pre-Amp Design
• Differential or Single-Ended Analog Inputs
• Selectable Gains: 18 dB, 24 dB, 30 dB, 34 dB
• Integrated Protection: Undervoltage, Overvoltage, Cycle-by-cycle Current Limit, Short Circuit, Clipping Detection, Overtemperature Warning and Shutdown, and DC Speaker Protection
• 90% Efficient Class-D Operation (4 Ω)
• Pin-Compatible Family of Devices with Voltage and Power-Level Options
