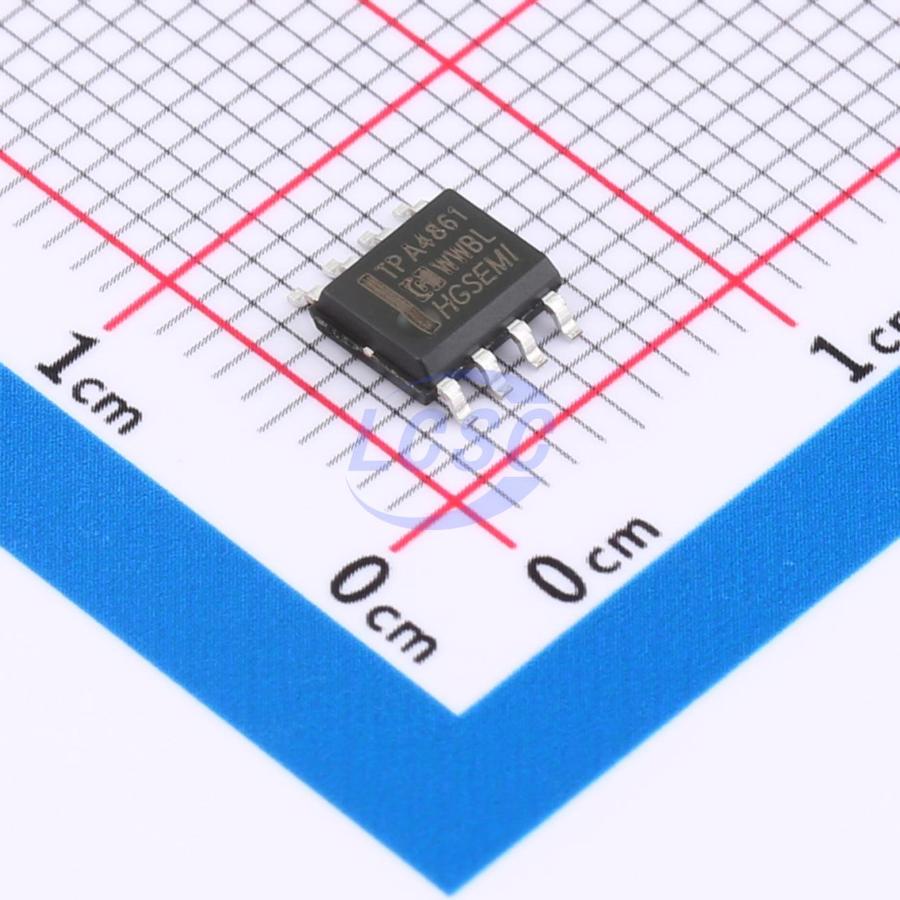

HGSEMI

TPA4861M/TR

2mA 1.9V~5.5V 1-Channel Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

3W single-channel Class AB audio power amplifier

Manufacturer: HGSEMI
Manufacturer part #: TPA4861M/TR
Store part #: C48983868
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,355 in stock

#C48983868

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
1+	₹46.36	₹46.36
10+	₹40.56	₹405.60
30+	₹38.00	₹1,140.00
100+	₹34.77	₹3,477.00
500+	₹33.49	₹16,745.00
1,000+	₹32.63	₹32,630.00

Quantity (min 1)

1 × ₹46.36

₹46.36

excl. GST

₹54.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPA4861M/TR

₹46.36 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 2mA
Voltage - Supply: 1.9V~5.5V
Features: Automatic mute/no-noise switch;Enable/shutdown function
Total Harmonic Distortion + Noise (THD+N): 0.08%
Signal-to-Noise Ratio: 98dB
Number of Inputs: 1 Pair Differential Inputs
Speaker Channels: 1-Channel
Output Power: 2.9W×1@4Ω;1.72W×1@8Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 80dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.271 g

Overview

The TPA4861 is a 3W mono Class-AB audio power amplifier. It operates over a supply voltage range of 1.9V to 5.5V in BTL bridge configuration. At a 5V supply, it delivers an average output power of 3.0W into a 4Ω load with THD less than 10%. In shutdown mode, the typical current consumption is less than 0.5μA. The device is designed to deliver adequate power and high-fidelity audio output with minimal external components, requiring no output coupling capacitors or bootstrap capacitors. Available in an SOP-8 package to help conserve board space, it is well suited for mobile phones and other portable applications demanding low-voltage, low-power operation.

Applications

Mobile phones
Amplifiers and Bluetooth speakers
Radios
GPS devices and dash cams
Voice-activated toys

Key features

Operating voltage range: 1.9V ~ 5.5V
Innovative "switching/transition noise" suppression technology effectively eliminates pop noise during power-up and power-down
Output power up to 2.9W at 10% THD+N, VDD=5V, 4Ω load
Output power up to 1.8W at 10% THD+N, VDD=5V, 8Ω load
Shutdown current less than 0.5μA
Over-temperature protection
Available in SOP-8 package
