TECH PUBLICDatasheet (PDF)

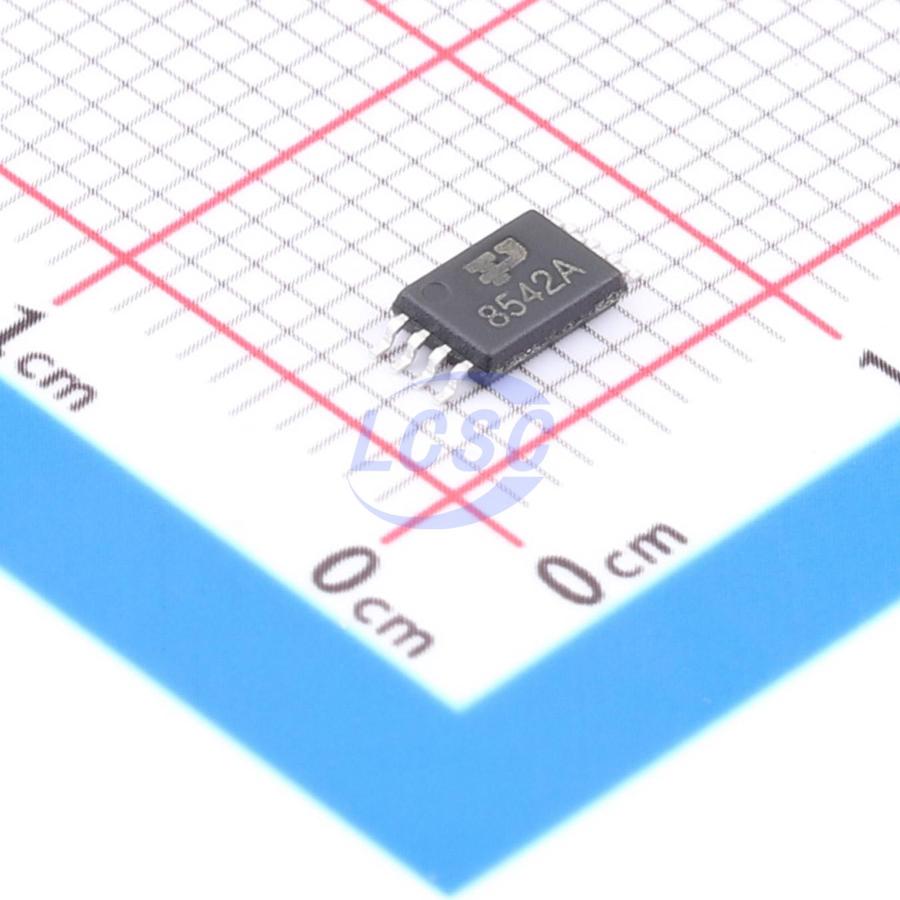

TPAD8542ARUZ
20mA 2 500uV 95dB 10pA 1MHz 50uA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-8 Instrumentation, Op Amps, Buffer Amps
TSSOP-8RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAD8542ARUZ
- Store part #
- C53340926
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,885 in stock
#C53340926
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.38 | ₹91.90 |
| 50+ | ₹14.46 | ₹723.00 |
| 150+ | ₹12.50 | ₹1,875.00 |
| 500+ | ₹11.05 | ₹5,525.00 |
| 2,000+ | ₹9.87 | ₹19,740.00 |
| 4,000+ | ₹9.29 | ₹37,160.00 |
5 × ₹18.38
₹91.90
excl. GST
₹108.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPAD8542ARUZ
₹91.90 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 50uA
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.163 g
Overview
TPAD8542 is a single-supply, low-power CMOS dual op-amp. These amplifiers feature 1MHz bandwidth with rail-to-rail input and output, operating from a single supply of 2.1V to 5.5V. The integrated EMI filter significantly improves RF immunity without additional components. The dual op-amp in a single chip has a typical low quiescent supply current of 50μA and an ultralow input bias current of 10pA, making this device ideal for low-offset, low-power, and high-impedance applications such as smoke detectors, photodiode amplifiers, and other sensors.
Applications
- Temperature sensors
- Battery-powered instruments
- Smoke/gas/environmental sensors
- Medical devices
- Portable instruments and mobile devices
- Active filters
- Piezoelectric transducer amplifiers
- Sensor interfaces
- Handheld test equipment
Key features
- General-purpose, low-cost
- Gain bandwidth product: 1MHz
- Low input bias current: 10pA (typical)
- Low offset voltage: 5mV (maximum)
- Quiescent current: 50μA per amplifier (typical)
- Unity-gain stable
- Rail-to-rail input and output
- Single-supply or dual-supply operation
- Supply voltage range: 2.1V to 5.5V
- Operating temperature: -40°C ~ +125°C
- Package type: TSSOP-8
