TECH PUBLICDatasheet (PDF)

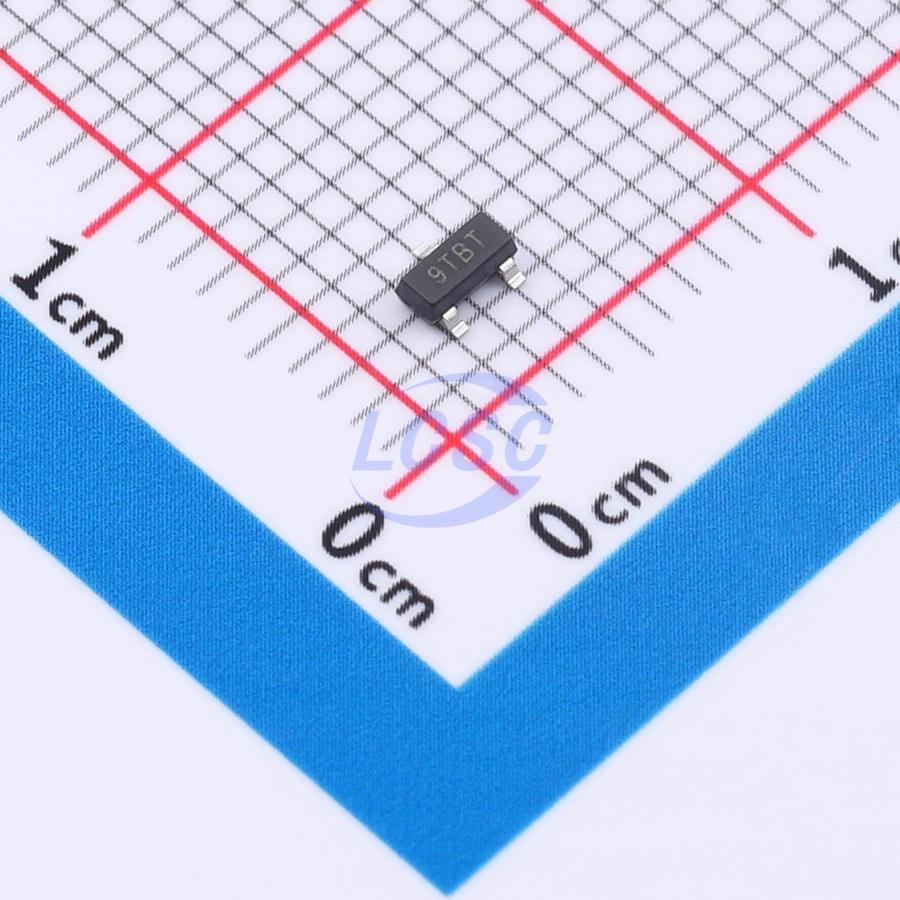

TPADM809TARTZ
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPADM809TARTZ
- Store part #
- C52817188
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,275 in stock
#C52817188
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.22 | ₹91.10 |
| 50+ | ₹14.35 | ₹717.50 |
| 150+ | ₹12.44 | ₹1,866.00 |
| 500+ | ₹10.98 | ₹5,490.00 |
| 3,000+ | ₹9.83 | ₹29,490.00 |
| 6,000+ | ₹9.25 | ₹55,500.00 |
5 × ₹18.22
₹91.10
excl. GST
₹107.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPADM809TARTZ
₹91.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output at Vcc=1.0V
- Push-pull active-low reset output
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX809S-31SR#C50314350TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 990 | ₹13.69 · 990 in stock | View |
 | TPAPX809S-31SA#C52817201TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,920 | ₹7.85 · 2,920 in stock | View |
 | TPMCP809T-315I/TT#C52817247TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,200 | ₹10.40 · 2,200 in stock | View |
 | TPTCM809TENB713#C52817314TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,710 | ₹8.03 · 3,710 in stock | View |
 | TPTLV809EA30DBZR#C52817321TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,875 | ₹10.69 · 2,875 in stock | View |
