TECH PUBLICDatasheet (PDF)

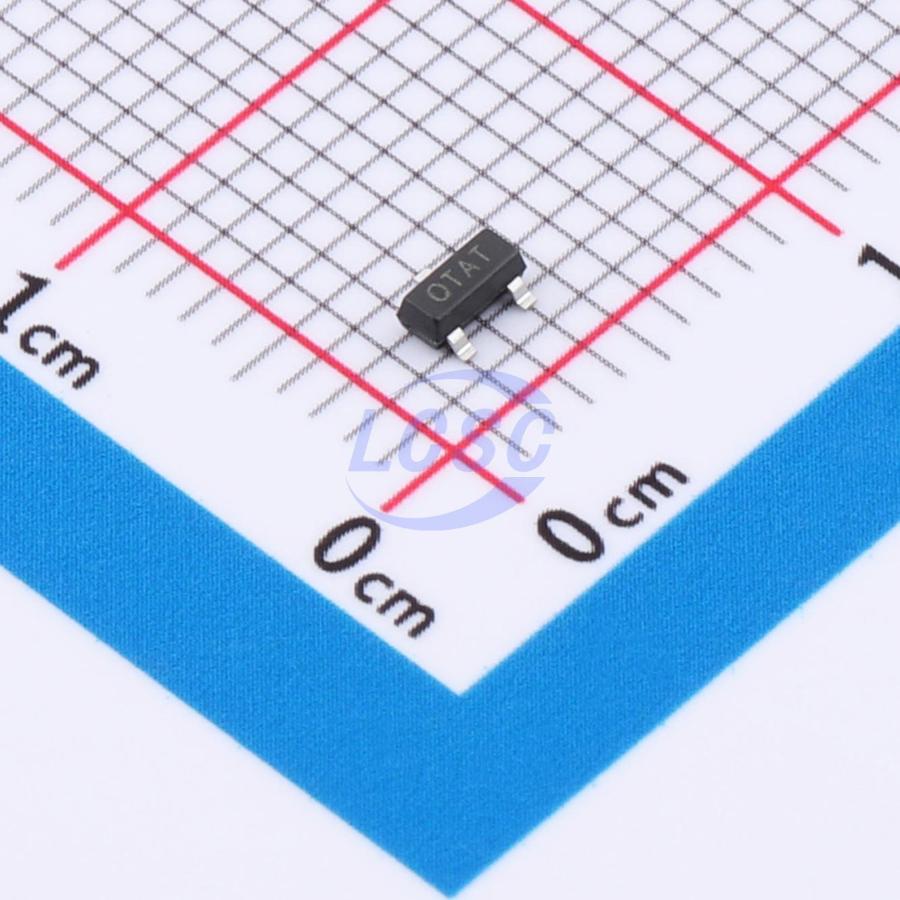

TPMCP809T-315I/TT
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP809T-315I/TT
- Store part #
- C52817247
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C52817247
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.40 | ₹52.00 |
| 50+ | ₹8.18 | ₹409.00 |
| 150+ | ₹7.06 | ₹1,059.00 |
| 500+ | ₹6.23 | ₹3,115.00 |
| 3,000+ | ₹5.56 | ₹16,680.00 |
| 6,000+ | ₹5.23 | ₹31,380.00 |
5 × ₹10.40
₹52.00
excl. GST
₹61.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMCP809T-315I/TT
₹52.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Logic output guaranteed correct with Vcc as low as 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX809S-31SR#C50314350TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 990 | ₹13.69 · 990 in stock | View |
 | TPADM809TARTZ#C52817188TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,275 | ₹18.22 · 2,275 in stock | View |
 | TPAPX809S-31SA#C52817201TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,920 | ₹7.85 · 2,920 in stock | View |
 | TPTCM809TENB713#C52817314TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,710 | ₹8.03 · 3,710 in stock | View |
 | TPTLV809EA30DBZR#C52817321TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,875 | ₹10.69 · 2,875 in stock | View |
