TECH PUBLICDatasheet (PDF)

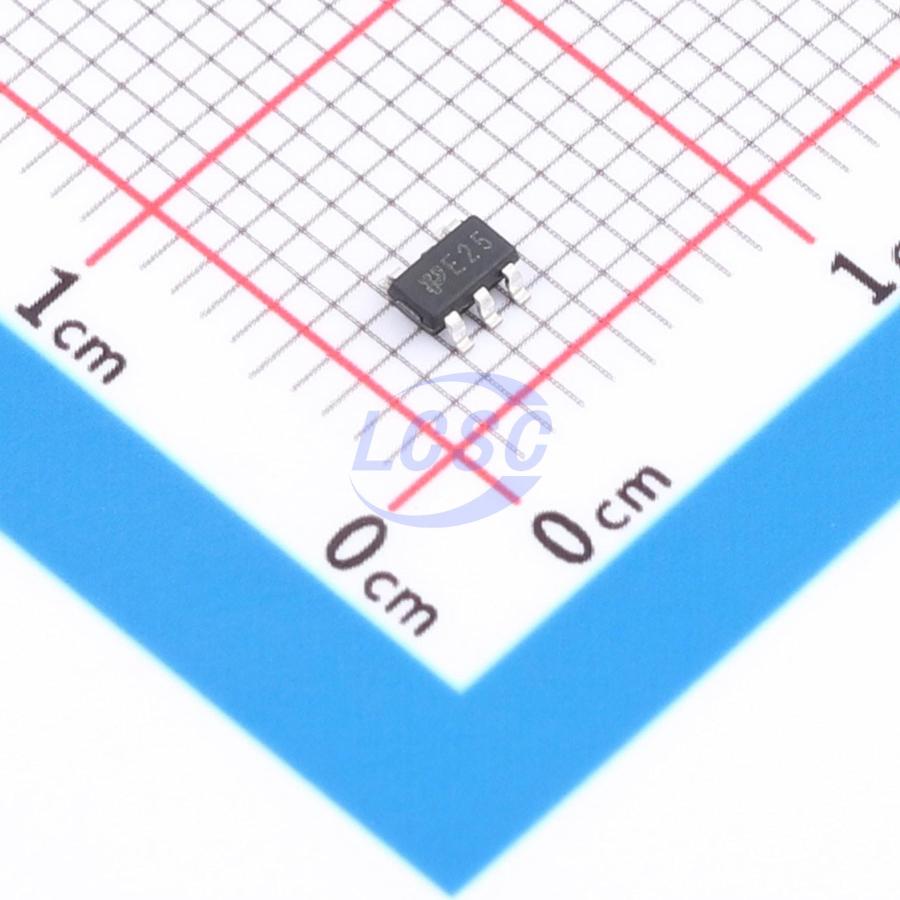

TPAP2112K-2.5TRG1
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
IC REG LINEAR 2.5V 600mA SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAP2112K-2.5TRG1
- Store part #
- C49451993
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
390 in stock
#C49451993
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.36 | ₹66.80 |
| 50+ | ₹10.49 | ₹524.50 |
| 150+ | ₹9.06 | ₹1,359.00 |
| 500+ | ₹7.98 | ₹3,990.00 |
| 3,000+ | ₹7.12 | ₹21,360.00 |
| 6,000+ | ₹6.69 | ₹40,140.00 |
5 × ₹13.36
₹66.80
excl. GST
₹78.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAP2112K-2.5TRG1
₹66.80 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This product is a series of low-dropout voltage regulators featuring a wide input voltage range (1.2V to 5.5V), low dropout voltage, low power consumption, and compact packaging. The 10µA quiescent current makes it ideal for battery-powered, always-on systems that require extremely low idle-state power consumption to extend operating life. By selecting a variant with an enable pin and pulling it low, the device enters shutdown mode, in which the typical shutdown current is as low as 10nA. This series of LDO regulators maintains stability across a wide input voltage range of 1.2V to 5.5V and the full output load current range (0mA to 600mA) using ceramic output capacitors.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld computers, and PDAs
- Wireless communication devices
- Audio/video devices
- Automotive navigation systems
Key features
- Quiescent current: 10µA (no load)
- Output accuracy: ±2%
- Output current: 600mA
- Shutdown current: 10nA (optional)
- Wide input voltage range: 1.2V to 5.5V
- Dropout voltage: 0.32V at 600mA output, VOUT = 3.3V
- Fixed output voltage options: 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with ceramic or tantalum capacitors
- Current limiting and over-temperature protection
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRT9080-25GJ5#C49451996TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,895 | ₹13.69 · 2,895 in stock | View |
