TECH PUBLICDatasheet (PDF)

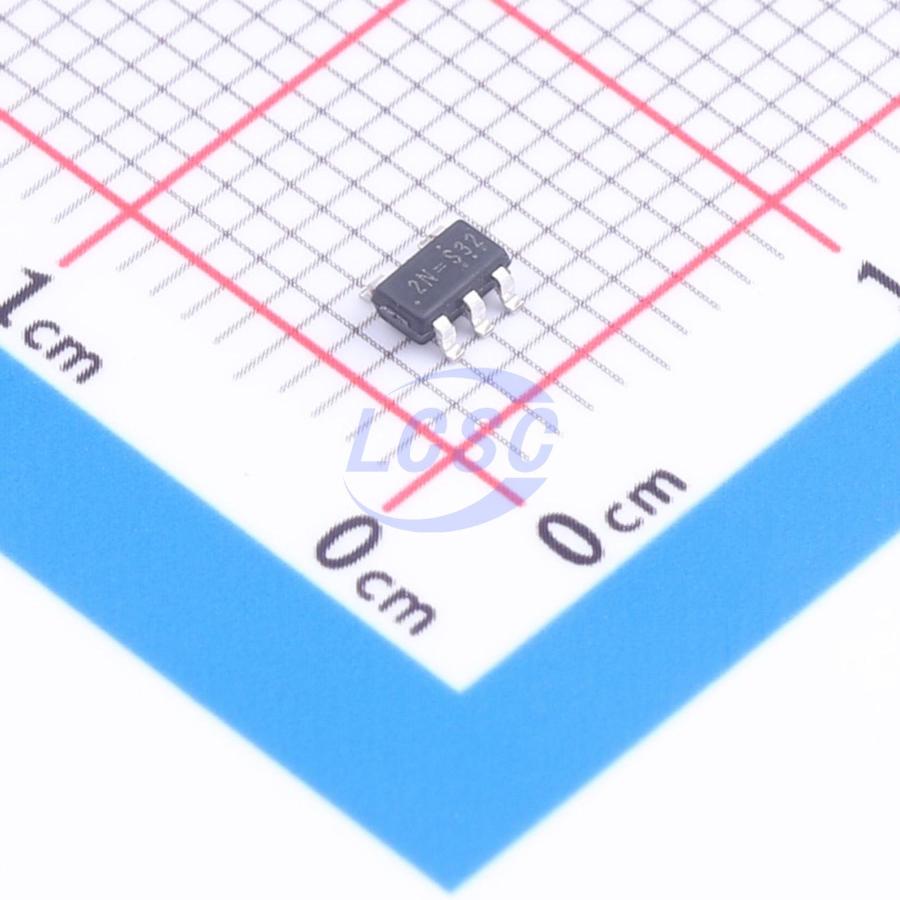

TPRT9080-25GJ5
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
IC REG LINEAR 2.5V 600mA SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9080-25GJ5
- Store part #
- C49451996
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,895 in stock
#C49451996
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.69 | ₹68.45 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.69
₹68.45
excl. GST
₹80.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9080-25GJ5
₹68.45 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TPRT9080 series is a family of low-dropout linear regulators featuring a wide input voltage range (1.2V to 5.5V), low dropout voltage, low power consumption, and miniaturized packaging. With a quiescent current of only 2μA, these devices are ideal for powering battery-operated, always-on systems that require extremely low idle-state power consumption to extend operating life. Shutdown mode can be activated by selecting a variant with an EN pin and pulling it low, reducing the shutdown current to a typical value as low as 10nA. This LDO series maintains stability with ceramic output capacitors across the full input voltage range of 1.2V to 5.5V and the entire output load current range (0mA to 600mA).
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld computers, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- Ground current 2μA at no load
- Output accuracy ±2%
- Output current 600mA
- Shutdown current 10nA (optional)
- Wide input voltage range: 1.2V to 5.5V
- Dropout voltage: 0.32V at 600mA output, VOUT = 3.3V
- Fixed output voltage options: 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable operation with ceramic or tantalum capacitors
- Current limiting and over-temperature protection
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAP2112K-2.5TRG1#C49451993TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 390 | ₹13.36 · 390 in stock | View |
