TECH PUBLICDatasheet (PDF)

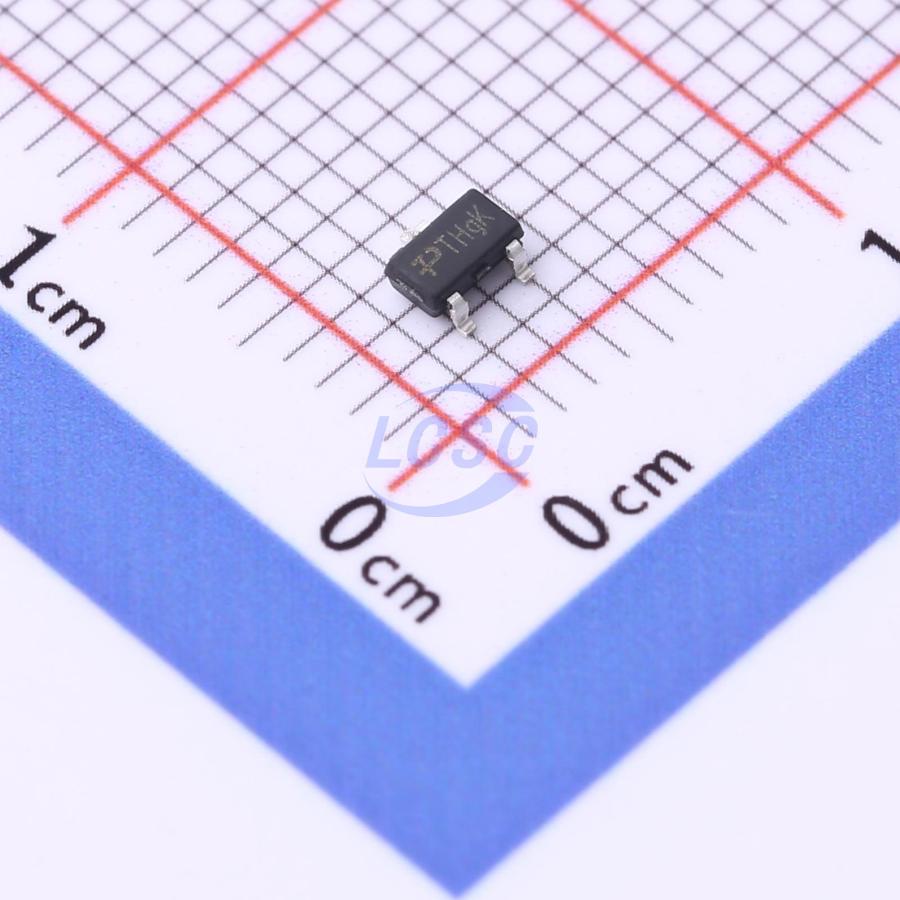

TPAP7333-33SRG
Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
300mA, 20uA, CMOS LDO Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAP7333-33SRG
- Store part #
- C3021126
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C3021126
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.14 | ₹75.70 |
| 50+ | ₹11.97 | ₹598.50 |
| 150+ | ₹10.39 | ₹1,558.50 |
| 500+ | ₹9.21 | ₹4,605.00 |
| 3,000+ | ₹7.86 | ₹23,580.00 |
| 6,000+ | ₹7.38 | ₹44,280.00 |
5 × ₹15.14
₹75.70
excl. GST
₹89.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAP7333-33SRG
₹75.70 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Output discharge;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The TPAP7333 series set of low power high voltage regulators implemented in CMOS technology which can provide 300 mA output current. The device allows input voltage as high as 5.5V. The TPAP7333 series is available in several fixed output voltages. CMOS technology ensures low dropout voltage and low quiescent current.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
Key features
- 20 μA Ground Current at no Load
- ±2% Output Accuracy
- 300 mA Output Current
- Wide Operating Input Voltage Range: 3V to 5.5V
- SOT - 23, SOT89 - 3 Package Available
