TECH PUBLICDatasheet (PDF)

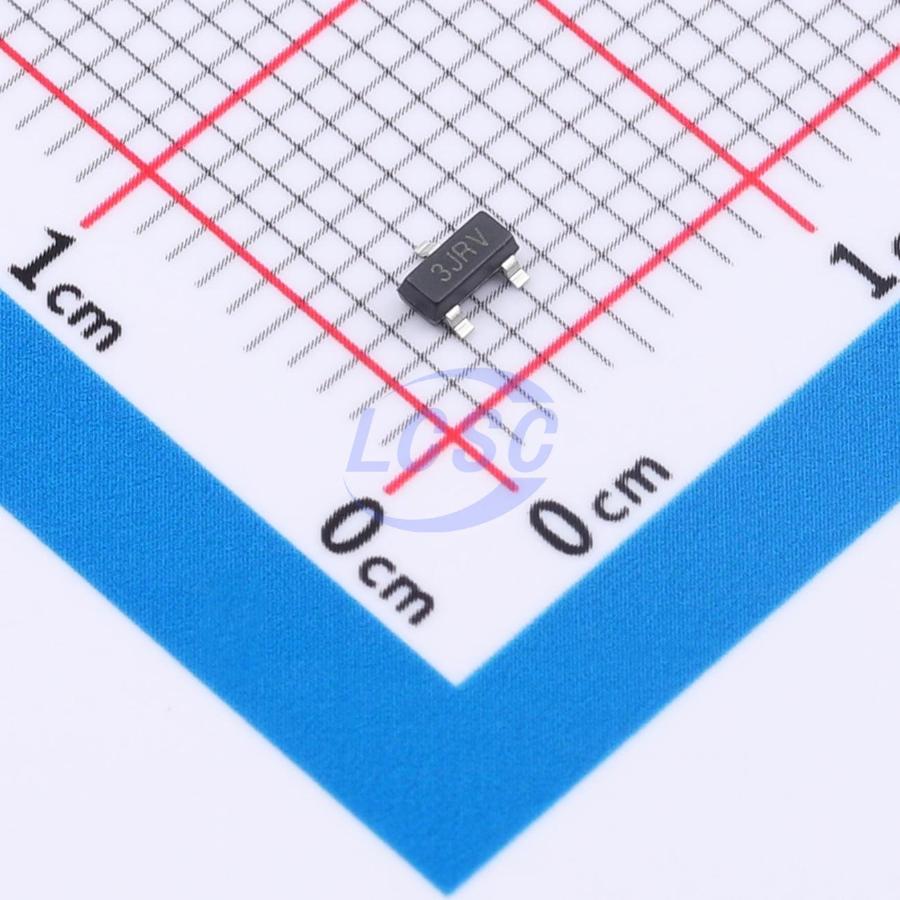

TPAX803JRVS3
560ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX803JRVS3
- Store part #
- C52817045
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52817045
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.31 | ₹126.55 |
| 50+ | ₹19.85 | ₹992.50 |
| 150+ | ₹17.49 | ₹2,623.50 |
| 500+ | ₹14.57 | ₹7,285.00 |
| 3,000+ | ₹13.27 | ₹39,810.00 |
| 6,000+ | ₹12.49 | ₹74,940.00 |
5 × ₹25.31
₹126.55
excl. GST
₹149.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX803JRVS3
₹126.55 for 5 + GST
Specifications
- Reset Timeout
- 560ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instrumentation
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- High accuracy ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as +1V
- Full temperature range specifications
- 2μA supply current
- Single output configuration: open-drain, active-low RESET output
- Available in SOT-23, SOT-323 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX803-40SAG#C52817192TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 495 | ₹11.52 · 495 in stock | View |
 | TPAPX803S-40SA#C52817197TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 500 | ₹11.46 · 500 in stock | View |
 | TPMIC803-40D3VM3#C52817263TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 385 | ₹11.46 · 385 in stock | View |
 | TPNCP803SN400T1G#C52817287TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,900 | ₹20.31 · 1,900 in stock | View |
