TECH PUBLICDatasheet (PDF)

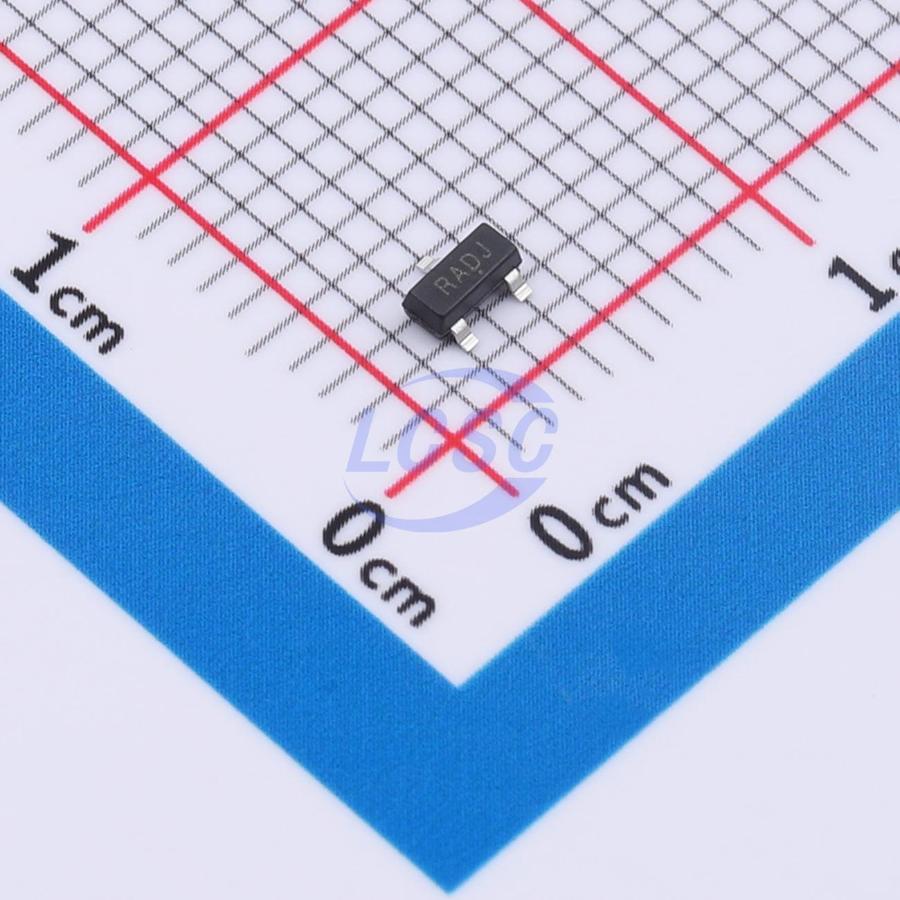

TPNCP803SN400T1G
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP803SN400T1G
- Store part #
- C52817287
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,900 in stock
#C52817287
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.31 | ₹101.55 |
| 50+ | ₹15.86 | ₹793.00 |
| 150+ | ₹13.96 | ₹2,094.00 |
| 500+ | ₹11.59 | ₹5,795.00 |
| 3,000+ | ₹10.53 | ₹31,590.00 |
| 6,000+ | ₹9.88 | ₹59,280.00 |
5 × ₹20.31
₹101.55
excl. GST
₹119.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP803SN400T1G
₹101.55 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instrumentation
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- High accuracy ±2%
- Precise VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as +1V
- Full temperature range specifications guaranteed
- 2μA supply current
- One output configuration available: open-drain active-low RESET output
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX803-40SAG#C52817192TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 495 | ₹11.52 · 495 in stock | View |
 | TPAPX803S-40SA#C52817197TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 500 | ₹11.46 · 500 in stock | View |
 | TPMIC803-40D3VM3#C52817263TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 385 | ₹11.46 · 385 in stock | View |
 | TPAX803JRVS3#C52817045TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹25.31 · 3,000 in stock | View |
