TECH PUBLICDatasheet (PDF)

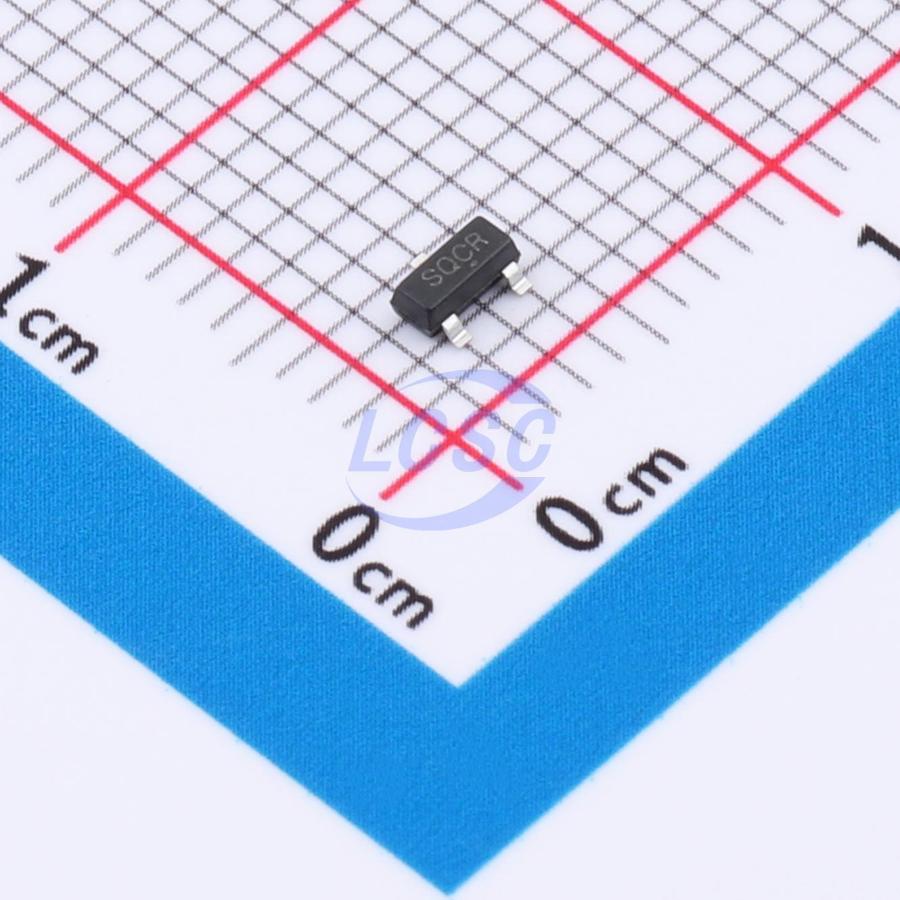

TPNCP803SN263T1G
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP803SN263T1G
- Store part #
- C52817284
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C52817284
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.58 | ₹77.90 |
| 50+ | ₹12.24 | ₹612.00 |
| 150+ | ₹10.57 | ₹1,585.50 |
| 500+ | ₹9.31 | ₹4,655.00 |
| 3,000+ | ₹8.31 | ₹24,930.00 |
| 6,000+ | ₹7.81 | ₹46,860.00 |
5 × ₹15.58
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP803SN263T1G
₹77.90 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- Automotive
Key features
- High accuracy ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid at VCC=+1V
- Specified over full temperature range
- 2μA supply current
- Single output configuration: open-drain active-low RESET output
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX803RS3#C23380907TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,085 | ₹17.07 · 1,085 in stock | View |
 | TPAPX803S-26SA#C52817194TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5 | ₹11.46 · 5 in stock | View |
 | TPMCP120T-270I/TT#C52817237TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,995 | ₹26.76 · 2,995 in stock | View |
 | TPMCP121T-270E/TT#C52817241TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,540 | ₹26.76 · 2,540 in stock | View |
 | TPMIC803-26D3VM3#C52817260TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 20 | ₹11.46 · 20 in stock | View |
