TECH PUBLICDatasheet (PDF)

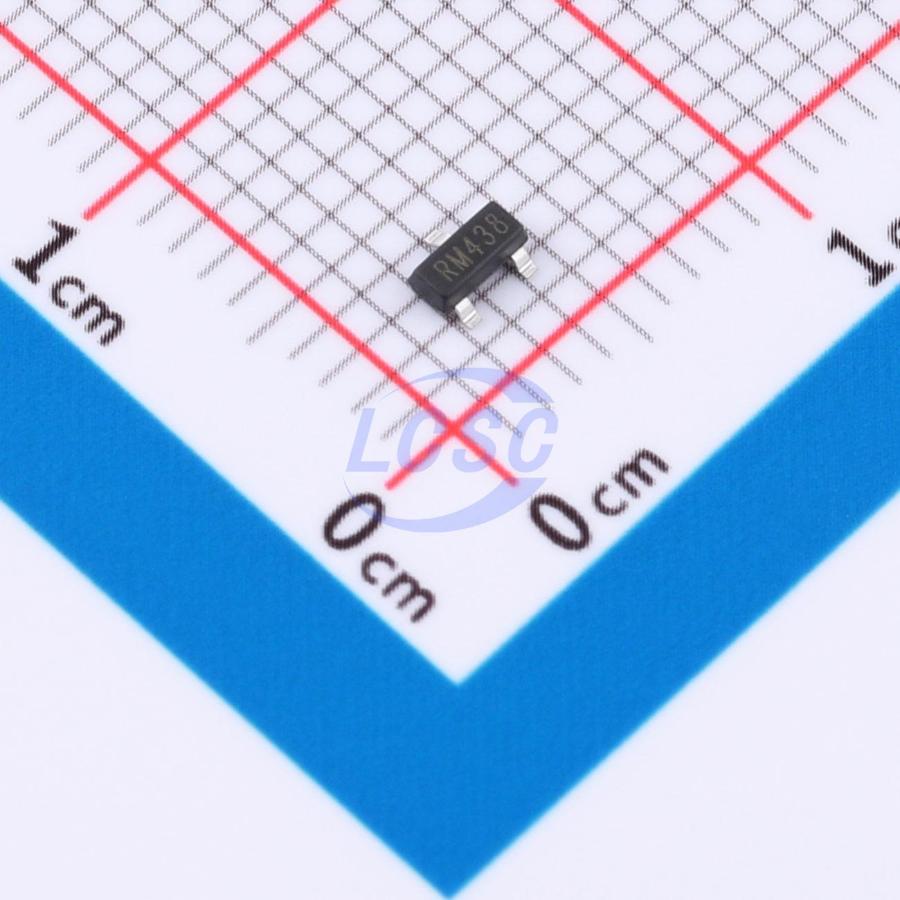

TPAX809MRGS3
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX809MRGS3
- Store part #
- C53100554
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53100554
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.37 | ₹76.85 |
| 50+ | ₹12.12 | ₹606.00 |
| 150+ | ₹10.49 | ₹1,573.50 |
| 500+ | ₹9.27 | ₹4,635.00 |
| 3,000+ | ₹8.30 | ₹24,900.00 |
| 6,000+ | ₹7.81 | ₹46,860.00 |
5 × ₹15.37
₹76.85
excl. GST
₹90.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX809MRGS3
₹76.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed valid logic output down to Vcc = 1.0V
- Push-pull active-low reset output
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMP809MEUR-TP#C52817110TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,170 | ₹8.11 · 4,170 in stock | View |
 | MAX809MTRG-TP#C52817133TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 8,660 | ₹10.39 · 8,660 in stock | View |
 | TPADM809MARTZ#C52817185TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹21.42 · 3,000 in stock | View |
 | TPAPX809S-44SA#C52817203TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,670 | ₹7.83 · 5,670 in stock | View |
 | TPMCP809T-450I/TT#C52817248TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,915 | ₹10.41 · 2,915 in stock | View |
