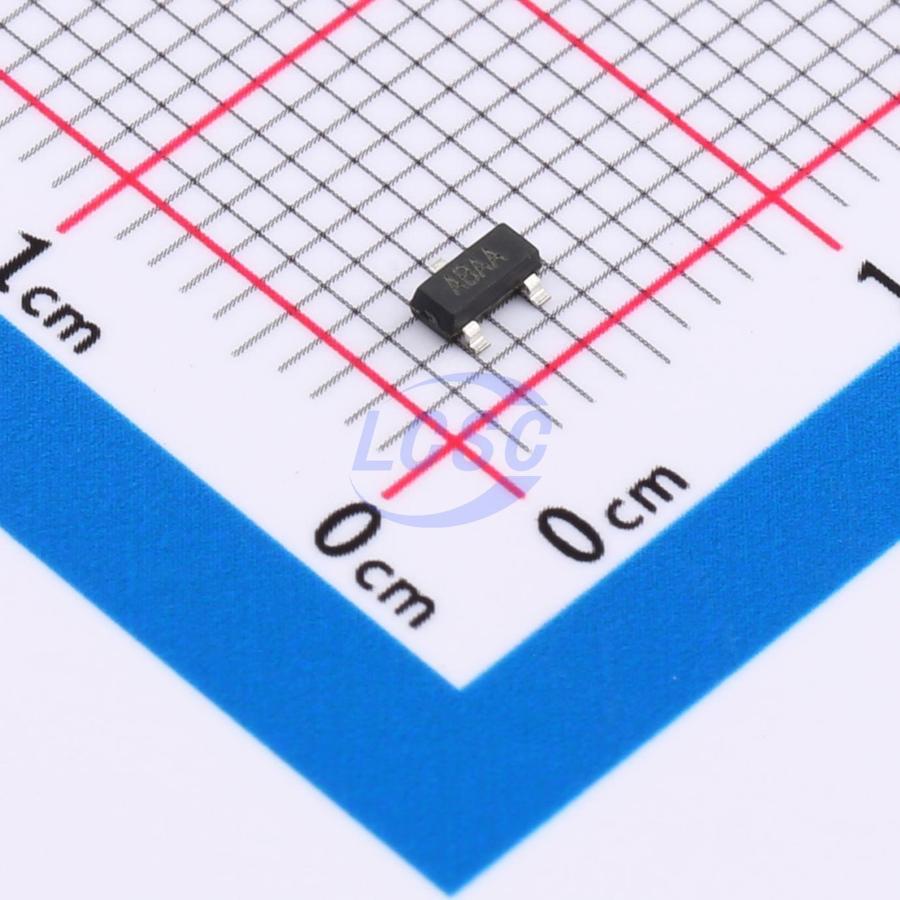

TPAX809MS3
Supervisor Push-Pull 1 Channel SOT-23
Microprocessor Voltage Detection and Reset IC
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX809MS3
- Store part #
- C19829400
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,845 in stock
#C19829400
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.07 | ₹50.35 |
| 50+ | ₹7.96 | ₹398.00 |
| 150+ | ₹6.91 | ₹1,036.50 |
| 500+ | ₹6.11 | ₹3,055.00 |
| 3,000+ | ₹5.48 | ₹16,440.00 |
| 6,000+ | ₹5.17 | ₹31,020.00 |
5 × ₹10.07
₹50.35
excl. GST
₹59.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX809MS3
₹50.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 560ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 8uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
A voltage monitoring IC designed for power supply voltage supervision in digital systems, operating across the industrial-grade temperature range. The TPAX809 asserts a reset signal low when the system supply voltage drops below the threshold, then deasserts the reset signal high after a minimum 140ms delay once the supply voltage recovers above the threshold. The TPAX809 series supports any customer-specified detection voltage. Seven standard industrial threshold voltages are currently available, covering four supply voltage categories: 5.0V, 3.3V, 3.0V, and 2.5V. The TPAX809 features a push-pull output stage that drives the reset output high when the monitored voltage exceeds the threshold. Fast power supply transients, glitches, and noise are filtered internally to prevent false triggering, while correct output logic and full performance are guaranteed even with supply voltages as low as 1.0V. The TPAX809 is available in a compact 3-pin SOT-23 package.
Applications
- Computers, servers, laptops, modems
- Wireless switches
- Embedded systems
- Home appliances, energy meters
- PDAs and handheld devices
Key features
- Industrial temperature range operation: -40°C to +85°C
- Operates down to 1V
- Power supply glitch immunity
- Available in SOT-23 package
- Lead-free and RoHS compliant
