TECH PUBLIC

TPG23159M10-1

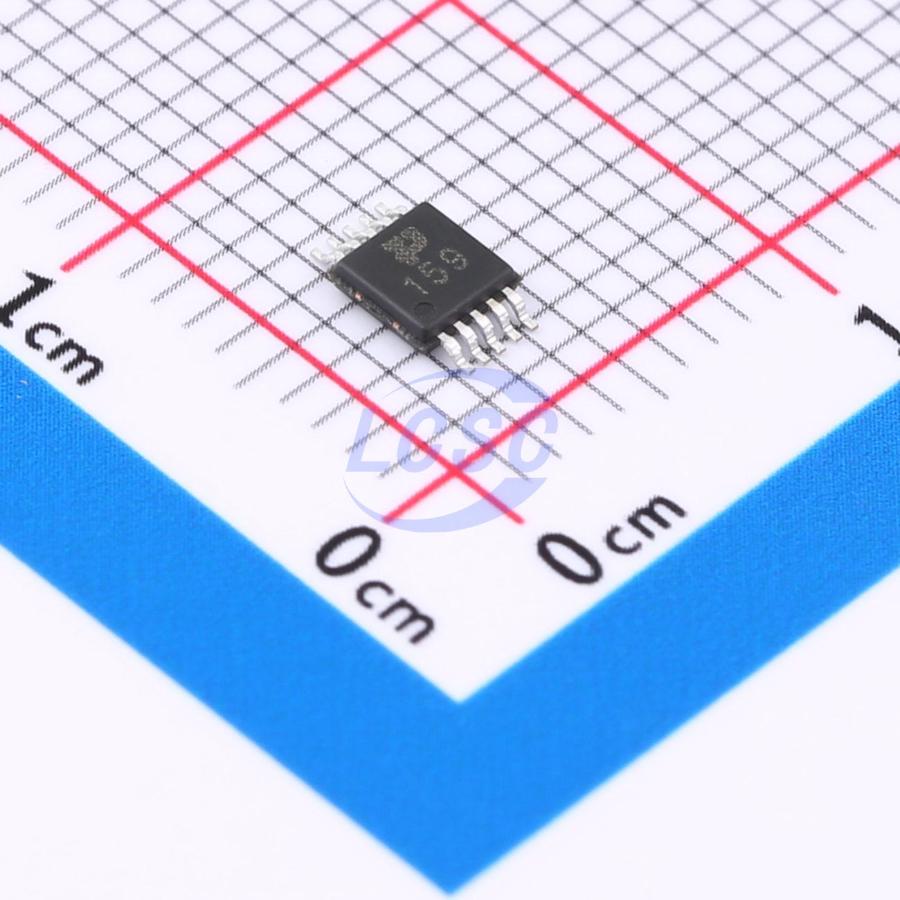

IC SWITCH 2:1 1.5Ω MSOP-10L

MSOP-10LRoHSActive

Dual SPDT Analog Switch, 2:1 Multiplexer/1:2 Demultiplexer

Manufacturer: TECH PUBLIC
Manufacturer part #: TPG23159M10-1
Store part #: C48543255
Package / case: MSOP-10L
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,675 in stock

#C48543255

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹44.21	₹221.05
50+	₹34.91	₹1,745.50
150+	₹30.92	₹4,638.00
500+	₹25.94	₹12,970.00
3,000+	₹23.72	₹71,160.00
6,000+	₹22.40	₹1,34,400.00

Quantity (min 5, multiples of 5)

5 × ₹44.21

₹221.05

excl. GST

₹260.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPG23159M10-1

₹221.05 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Ron: 1.5Ω
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.112 g

Overview

This is a dual SPDT low on-resistance analog switch capable of operating from a single supply voltage of 1.5V to 5.5V. The device features low on-resistance and excellent on-resistance matching, with break-before-make functionality to prevent signal distortion during channel switching. The device achieves true isolation — even when the voltage on the COMx pins exceeds VCC, only a minimal amount of current flows back to the supply.

Applications

Mobile phones
Tablets
Laptops
USB Type-C microphone/ground switching
Audio signal routing
Video signal routing
UART signal routing
USB2.0 signal and power routing
Telecom signal switching
Sample-and-hold systems
Signal gating
Multiplexers/demultiplexers

Key features

Low on-resistance, Ron = 1.5 Ω (at COMx = 50)
1.8V logic-compatible control pins
High off-state isolation: -100dB @ 100KHz
COMx pins can be driven above VCC for true isolation, even during power failure
Low inter-channel crosstalk: -97dB @ 100KHz
High bandwidth (-3dB @ 700MHz) for USB2.0 high-speed signal routing
Low quiescent current (< 2 μA) with wide supply voltage range (1.5V ~ 5.5V)
Compact package: MSOP-10L
