TECH PUBLICDatasheet (PDF)

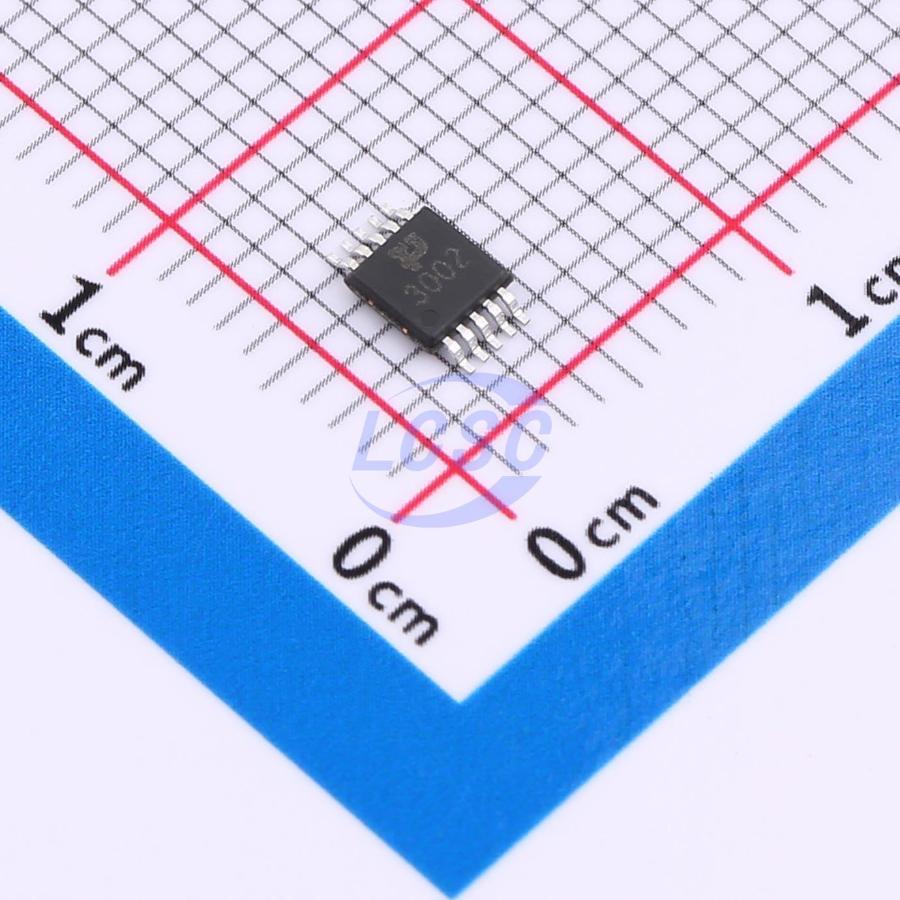

TPSGM3002XMS
2 1.5Ω 1.5V~5.5V MSOP-10L Analog Switches, Multiplexers, Demultiplexers
MSOP-10LRoHSActive
Dual SPDT Analog Switch, 2:1 Multiplexer / 1:2 Demultiplexer
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSGM3002XMS
- Store part #
- C47117638
- Package / case
- MSOP-10L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C47117638
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.89 | ₹199.45 |
| 50+ | ₹31.55 | ₹1,577.50 |
| 150+ | ₹27.98 | ₹4,197.00 |
| 500+ | ₹23.52 | ₹11,760.00 |
| 2,500+ | ₹21.54 | ₹53,850.00 |
| 4,000+ | ₹20.35 | ₹81,400.00 |
5 × ₹39.89
₹199.45
excl. GST
₹235.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPSGM3002XMS
₹199.45 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 2
- Ron
- 1.5Ω
- Voltage - Supply
- 1.5V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
The device is capable of true isolation. Even when COMx overrides VCC, very little current will flow back to the supply.
Applications
- Mobile Phones, Tablets and Notebooks
- USB Type-C Mic/Gnd Switch
- Audio, Video, UART, USB2.0 Signal and Supply Routing
- Telecom Signal Switching
- Sample and Hold Systems
- Signal Gating, Multiplexer/Demultiplexer
Key features
- Low On-resistance, Ron = 1.5Ω when COMx = 5V
- 1.8V Logic Compatible Control Pin
- High Off-isolation: -100dB @ 100KHz
- COMx Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
- High Bandwidth (-3dB @ 700MHz) Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (< 2μA) With Very Wide Supply Range (1.5V ~ 5.5V)
- Small Packaging: MSOP-10L
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPG4717M10#C47117616TECH PUBLIC · MSOP-10L | TECH PUBLIC | MSOP-10L | 179 | ₹68.41 · 179 in stock | View |
 | TPG23159M10#C48543254TECH PUBLIC · MSOP-10L | TECH PUBLIC | MSOP-10L | 3,600 | ₹44.21 · 3,600 in stock | View |
 | TPG23159M10-1#C48543255TECH PUBLIC · MSOP-10L | TECH PUBLIC | MSOP-10L | 7,675 | ₹44.21 · 7,675 in stock | View |
 | TS5A23160DGSR-TP#C48543275TECH PUBLIC · MSOP-10L | TECH PUBLIC | MSOP-10L | 459 | ₹75.78 · 459 in stock | View |
 | TS5A23157DGSR-TP#C48543273TECH PUBLIC · MSOP-10L | TECH PUBLIC | MSOP-10L | 9,430 | ₹43.78 · 9,430 in stock | View |
