TIDatasheet (PDF)

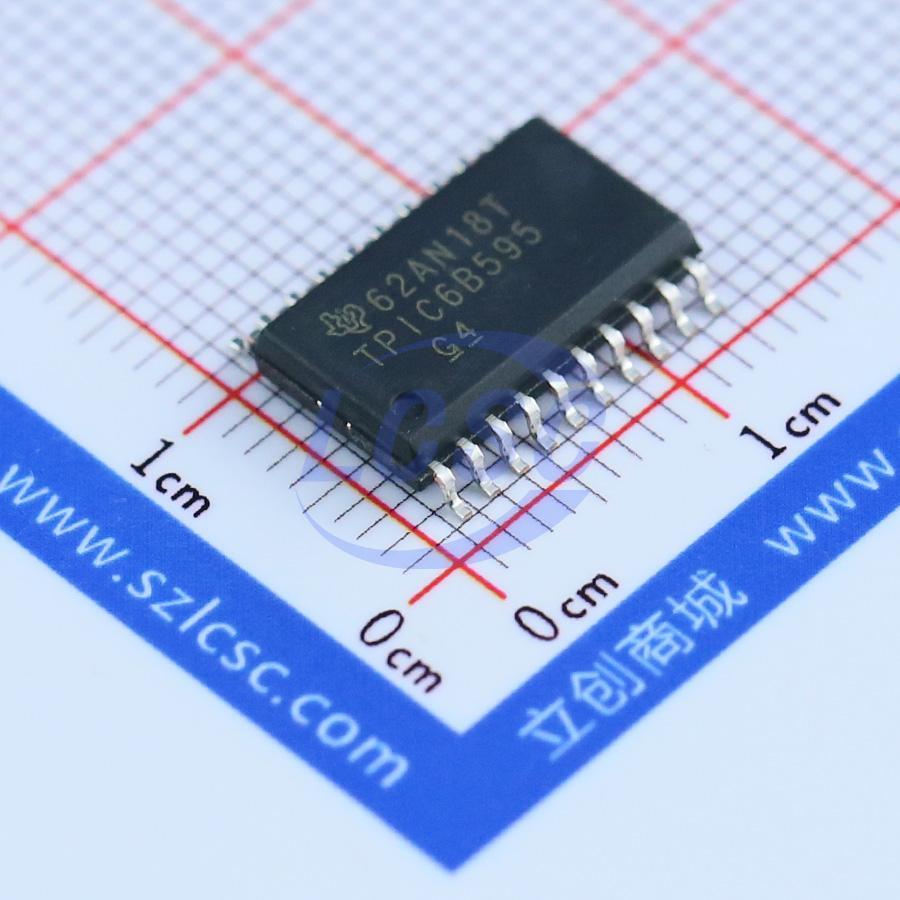

TPIC6B595DWR
4.5V~5.5V 1 150mA 150ns@5V,30pF Serial-to-Serial or Parallel SOIC-20-300mil Shift Registers RoHS
SOIC-20-300milROHS3 CompliantActive
8-BIT SHIFT REGISTER
- Manufacturer
- TI
- Manufacturer part #
- TPIC6B595DWR
- Store part #
- C7094
- Package / case
- SOIC-20-300mil
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,382 in stock
#C7094
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.91 | ₹154.91 |
| 10+ | ₹128.83 | ₹1,288.30 |
| 30+ | ₹105.15 | ₹3,154.50 |
| 100+ | ₹89.08 | ₹8,908.00 |
| 500+ | ₹81.91 | ₹40,955.00 |
| 1,000+ | ₹78.65 | ₹78,650.00 |
1 × ₹154.91
₹154.91
excl. GST
₹182.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPIC6B595DWR
₹154.91 for 1 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 278mW
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Open-drain
- Series
- TPIC
- Current - Output Low(IOL)
- 150mA
- Number of Elements
- 1
- Output Current
- 150mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 150ns@5V,30pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.747 g
Overview
Applications
- relays
- solenoids
- other medium - current or high - voltage loads
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPIC6B595DW#C2859837TI · SOIC-20-300mil | TI | SOIC-20-300mil | On request | Price on request | Quote |
