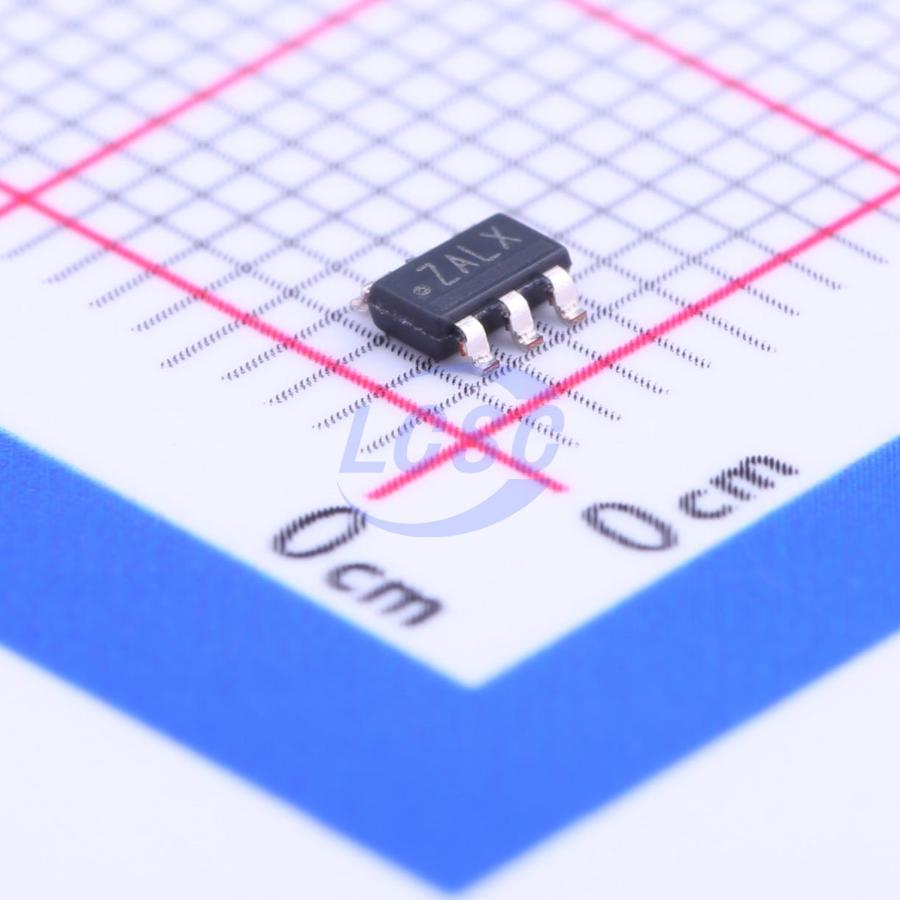

TPL5110DDCT

TSOT-23-6 Programmable Timers and Oscillators RoHS

TSOT-23-6ROHS3 CompliantActive

Nanopower system timer for power gating

Manufacturer: TI
Manufacturer part #: TPL5110DDCT
Store part #: C125830
Package / case: TSOT-23-6
Category: Programmable Timers and Oscillators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,145 in stock

#C125830

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹168.74	₹168.74
10+	₹140.28	₹1,402.80
30+	₹124.65	₹3,739.50
250+	₹100.76	₹25,190.00
500+	₹92.94	₹46,470.00
1,000+	₹89.47	₹89,470.00

Quantity (min 1)

1 × ₹168.74

₹168.74

excl. GST

₹199.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per reel

TPL5110DDCT

₹168.74 for 1 + GST

Specifications

Output Logic Level - Low: 0.3V;0.7V
Operating Temperature: -40℃~+105℃
Voltage - Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.036 g

Overview

The TPL5110 nano-timer is a low-power system timer integrated with a MOSFET driver, which is very suitable for power gating in duty cycle or battery-powered applications. The quiescent current of the TPL5110 is only 35 nA, and it can be used to start and stop the power line, thereby significantly reducing the total system standby current during sleep. This energy-saving feature can significantly reduce the battery size, so the TPL5110 is very suitable for energy harvesting or wireless sensor applications. The TPL5110 offers selectable time intervals from 100 ms to 7200 s, which are suitable for power gating applications. In addition, the TPL5110 also has a unique one-shot function, which allows the timer to power the MOSFET for only one cycle. The TPL5110 comes in a 6-pin Small Outline Transistor (SOT23) package.
