TECH PUBLICDatasheet (PDF)

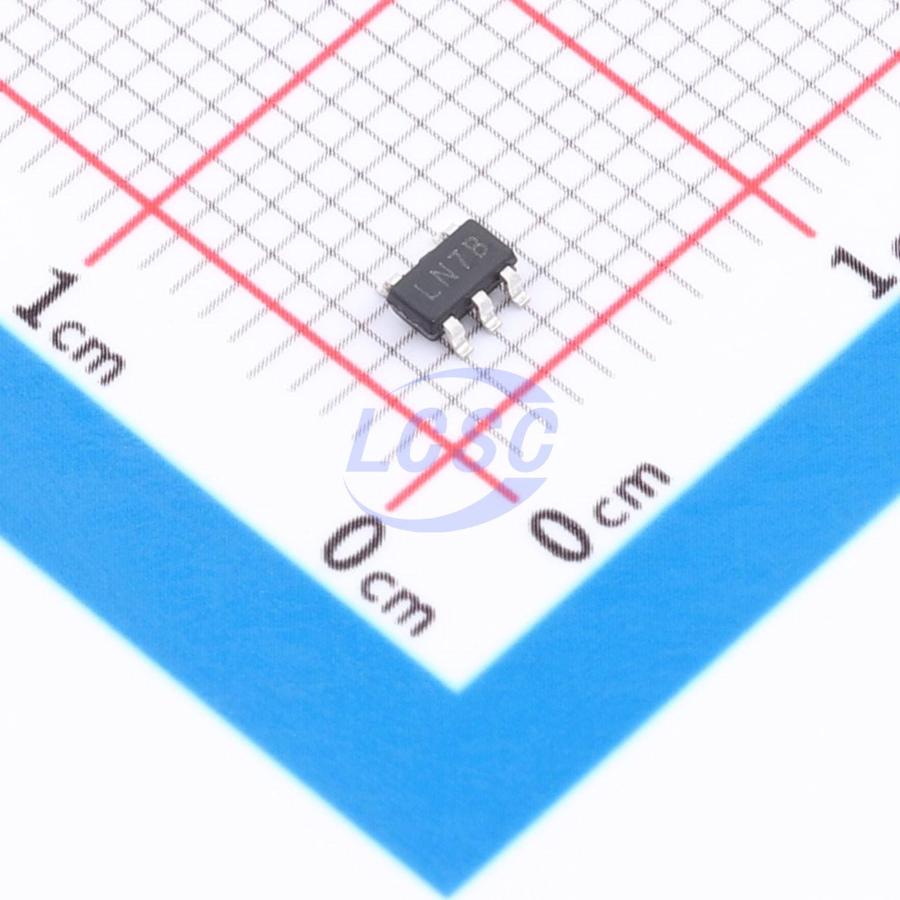

TPLP5907MFX-2.5
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
IC REG LINEAR 2.5V 300mA SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPLP5907MFX-2.5
- Store part #
- C49451988
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C49451988
Stock & price checked 18 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.69 | ₹68.45 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.69
₹68.45
excl. GST
₹80.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPLP5907MFX-2.5
₹68.45 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
This device is a low-dropout regulator with enable function, operating over a voltage range of 1.2V to 5.5V. It delivers up to 300mA output current in a compact package. The 2μA low quiescent current and 0.5μA shutdown current make it ideal for battery-powered applications requiring long service life. Additional features include current limiting, over-temperature protection, and output discharge function.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld computers, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- Ground current: 2μA (no load)
- Output accuracy: ±2%
- Output current: 300mA
- Disable current: 10nA (optional)
- Wide input voltage range: 1.2V to 5.5V
- Dropout voltage: 0.18V at 300mA output current (V0 = +3.3V)
- Fixed output voltage options: 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable operation with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A2025PDBVR-TP#C49452004TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,270 | ₹13.38 · 2,270 in stock | View |
 | TPLP2992IM5X-2.5#C18212637TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,885 | ₹22.33 · 1,885 in stock | View |
 | TPNCP718ASN250T1G#C18212640TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,500 | ₹20.18 · 1,500 in stock | View |
 | XC6204B252MR#C18212675TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,870 | ₹12.89 · 1,870 in stock | View |
 | TPMIC5219-2.5YM5#C18212648TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,230 | ₹21.51 · 2,230 in stock | View |
