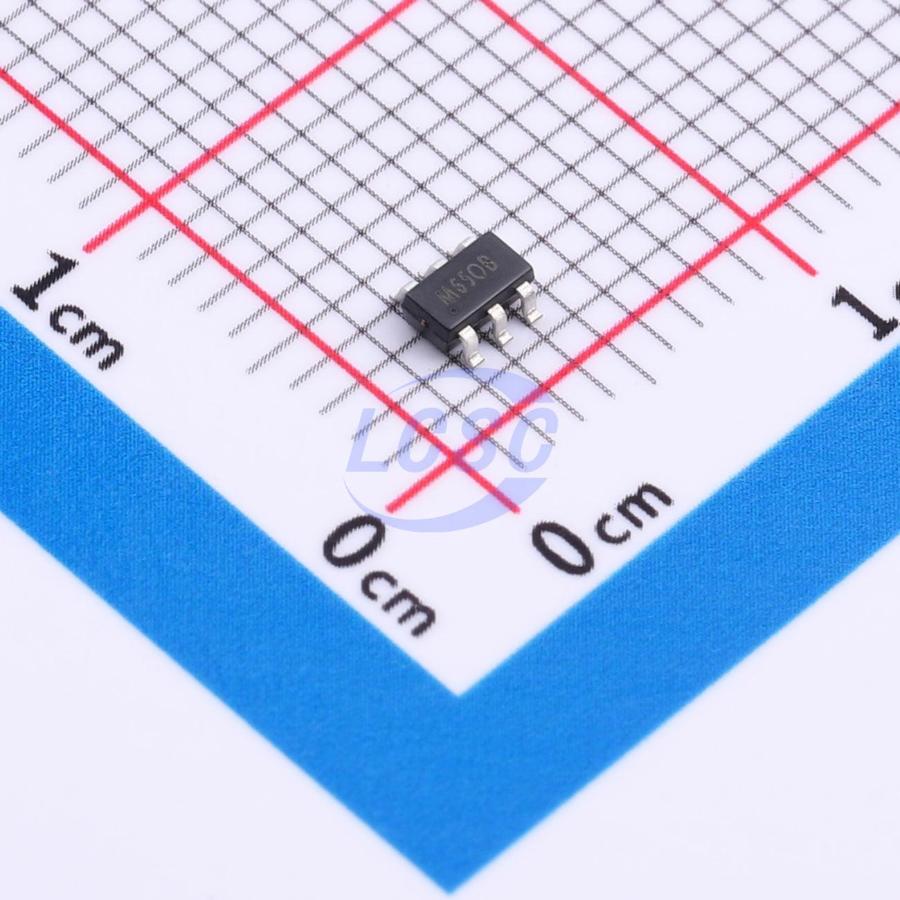

TPM16050-S6TR
2.9V~17V SOT-23-6 Motor Drivers, Controllers
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPM16050-S6TR
- Store part #
- C37833384
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,210 in stock
#C37833384
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹21.55 | ₹215.50 |
| 100+ | ₹16.56 | ₹1,656.00 |
| 300+ | ₹14.43 | ₹4,329.00 |
| 1,000+ | ₹11.77 | ₹11,770.00 |
| 6,000+ | ₹10.60 | ₹63,600.00 |
| 12,000+ | ₹9.88 | ₹1,18,560.00 |
10 × ₹21.55
₹215.50
excl. GST
₹254.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM16050-S6TR
₹215.50 for 10 + GST
Specifications
- Features
- Overcurrent Protection;Short-Circuit Protection;Input under-voltage protection
- Voltage - Supply
- 2.9V~17V
- Operating Temperature
- -40℃~+125℃
- RDS(on)
- 850mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
TPM16050 is a high-voltage H-bridge driver specifically designed for IR cut filter control in surveillance cameras. It is optimized to drive IR cut filters with an impedance of 20Ω at supply voltages of 3.3V, 5V, or 12V, delivering drive currents up to 0.5A. TPM16050 can withstand supply voltages up to 17V. It also supports connecting an external 26.9Ω/2.5W resistor in series with the power supply pin VM to protect low-voltage loads such as IR cut filters from voltage overstress when operating at 12V. Built-in protection features — including overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection — enhance overall system reliability.
Applications
- Surveillance cameras
- Electronic locks
- Consumer devices
- Toys
Key features
- 17V H-bridge driver
- MOSFET on-resistance Rds(on) high-side + low-side 0.85 Ω
- Maximum output current 0.5A
- Operating supply voltage 3V to 17V
- Compatible with 3.3V and 5V PWM interface
- Protection features: UVLO, overcurrent protection, thermal shutdown
- Compact package: SOT23-6
