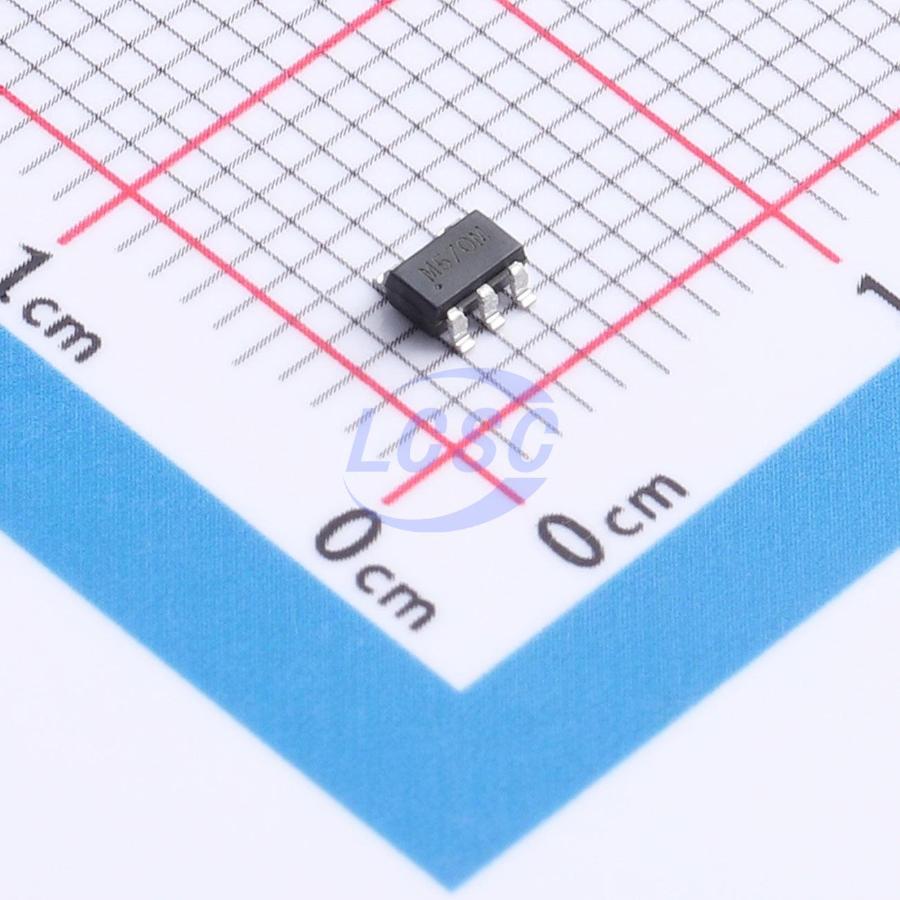

TPM27517-S5TR
4.5V~23V 300mA 300mA SOT-23-5 Gate Drivers RoHS
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPM27517-S5TR
- Store part #
- C20608588
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,490 in stock
#C20608588
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.25 | ₹236.25 |
| 50+ | ₹36.42 | ₹1,821.00 |
| 150+ | ₹31.74 | ₹4,761.00 |
| 500+ | ₹25.97 | ₹12,985.00 |
| 3,000+ | ₹23.26 | ₹69,780.00 |
| 6,000+ | ₹21.64 | ₹1,29,840.00 |
5 × ₹47.25
₹236.25
excl. GST
₹278.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM27517-S5TR
₹236.25 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.2V
- Low Level Delay Time
- 13ns
- High Level Delay Time
- 13ns
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.1V
- Voltage - Supply
- 4.5V~23V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 300mA
- Rise Time
- 7ns
- Fall Time
- 6ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
TPM27517 is a single-channel low-side gate driver for MOSFET, IGBT, and GaN power switches. Its 5A high sink and source current capability improves switching efficiency by minimizing transition time and switching losses. The device supports supply voltages up to 25V and input voltages down to -5V, enhancing system robustness, especially in noisy industrial applications. Its ultra-low propagation delay meets the demands of applications with stringent timing requirements. The compact SOT23-5 package facilitates high-density power supply designs.
Applications
- Switch-mode power supplies
- DC-DC converters
- Motor control, solar inverters, uninterruptible power supplies
- Gate and IGBT drivers
Key features
- Industry-standard pinout
- 4.5V ~ 23V single-supply range
- Single-channel 5A peak source and sink drive capability
- TTL and CMOS threshold compatible
- Output held low during VDD UVLO or floating input
- Low propagation delay (13ns typical)
- Fast rise and fall times (7ns and 6ns typical)
- ESD protection exceeds JESD 22 – 6kV HBM, 1.5kV CDM
- Available in SOT23-5 package
