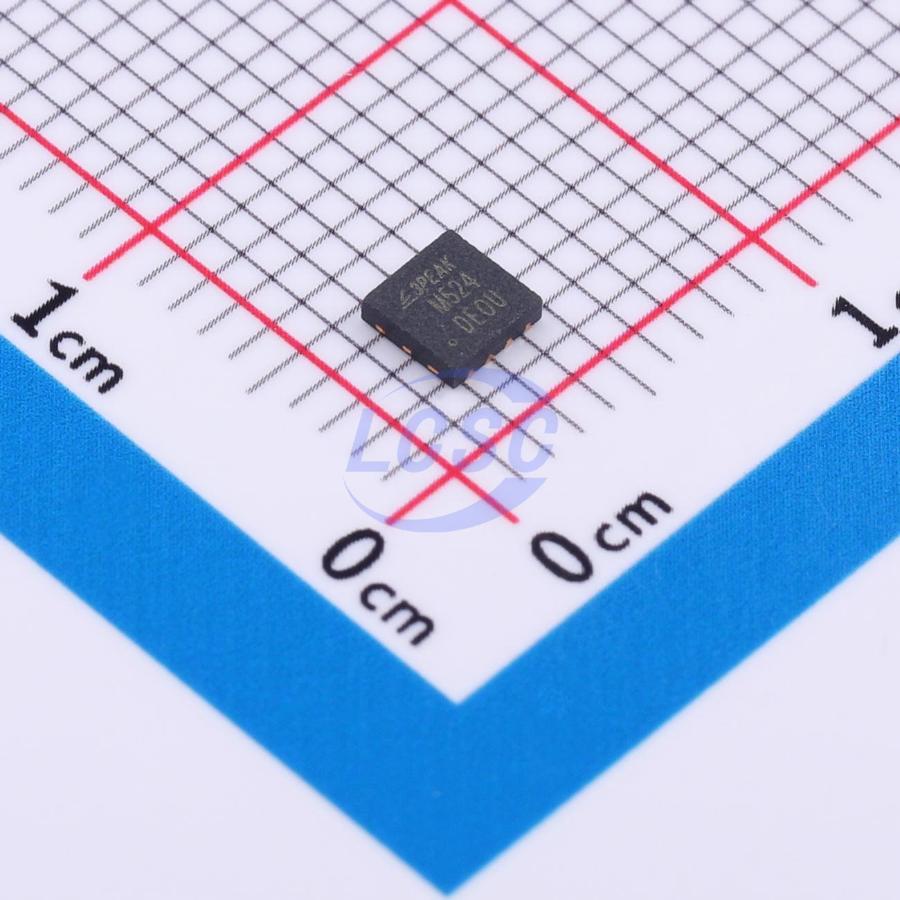

TPM27524-DF6R
4.5V~23V 5A 5A DFN-8(3x3) Gate Drivers RoHS
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPM27524-DF6R
- Store part #
- C38487412
- Package / case
- DFN-8(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C38487412
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.45 | ₹277.25 |
| 50+ | ₹42.76 | ₹2,138.00 |
| 150+ | ₹37.26 | ₹5,589.00 |
| 500+ | ₹30.48 | ₹15,240.00 |
| 2,500+ | ₹27.31 | ₹68,275.00 |
| 4,000+ | ₹25.40 | ₹1,01,600.00 |
5 × ₹55.45
₹277.25
excl. GST
₹327.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPM27524-DF6R
₹277.25 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.4V
- Input Logic Level - High
- 1.65V
- Voltage - Supply
- 4.5V~23V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 7ns
- Fall Time
- 6ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
This series of devices are dual-channel low-side gate drivers designed for MOSFET, IGBT, and GaN power switches. The 5A high sink and source current drive capability improves switching efficiency by minimizing transition time and switching losses. The devices support supply voltages up to 25V and a DC input voltage capability of −5V, enhancing system robustness, particularly in high-noise industrial applications. Ultra-low propagation delay and excellent matching between the two channels are optimized for timing-critical applications. The series includes a set of gate drivers with different polarities, allowing customers to select based on application requirements. Broad package options support SOP8, EMSOP8, and DFN3X3-8, compatible with industry-standard packages. The additional ultra-compact DFN2X2-8 package facilitates ultra-compact synchronous rectifier designs in power modules.
Applications
- Switching mode power supplies
- DC-DC converters
- Motor control
- Solar inverters
- Gate and IGBT drivers
Key features
- Industry-standard pin configuration
- AEC-Q100 Grade 1 automotive certified
- 4.5-V ~ 23-V single-supply operating range
- Dual independent channels
- 5-A peak source and sink drive capability
- Independent enable function per output
- TTL and CMOS input threshold compatible
- Output held low during VDD UVLO or floating input
- Low propagation delay
- Fast rise and fall times
- Typical delay matching between two channels < 1 ns
- Two outputs parallelable for higher drive current
- ESD protection exceeding JESD 22
- Available in SOP8, EMSOP8, DFN3X3-8, and DFN2X2-8 packages
